ZC-A-4

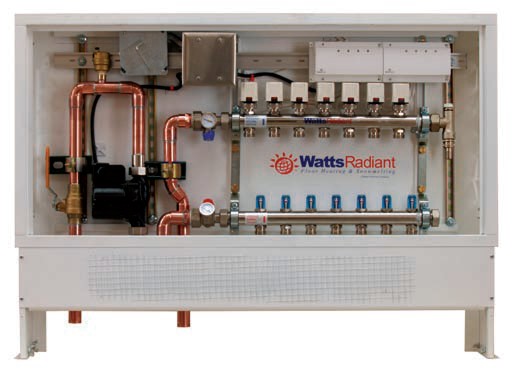

Watts Thermal Pro Standard 4 Circuit Stainless Steel Manifold with Zone Pump Panel, Actuators
Watts Thermal Pro Standard 4 Circuit Stainless Steel Manifold with Zone Pump Panel, Actuators
Specifications:
| Height | 29.5 in. |
| Width | 41.5 in. |
| Depth | 4.5 in. |
| End 1 Connection Type | NPT |
| End 1 Connection Type | 1 1/4 in. |
| End 2 Connection Type | NPT |
| End 2 Connection Size | 1 1/4 in. |
Thermal Pro Standard Zone Panels - Manifold w/ Pump & ActuatorsDescriptionThe Thermal Pro Standard Zone Panel allows you to supply two or more different zones from one manifold location using the included zone pump. This panel would typically be used when the mechanical room does not have a dedicated pump to supply the heated water. It is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs. The Thermal Pro Standard Zone Panel is available with 2 to 7 circuits and comes with the individual circuit actuators and zone control all factory wired; one actuator to one zone. Controlling more than one zone with a single thermostat is as easy as jumping the appropriate terminals in the control. See the Zone Valve Actuator Control instructions for further details. 29.5 in. high x 41.5 in. wide x 4.5 in. deep Each panel includes:
|
