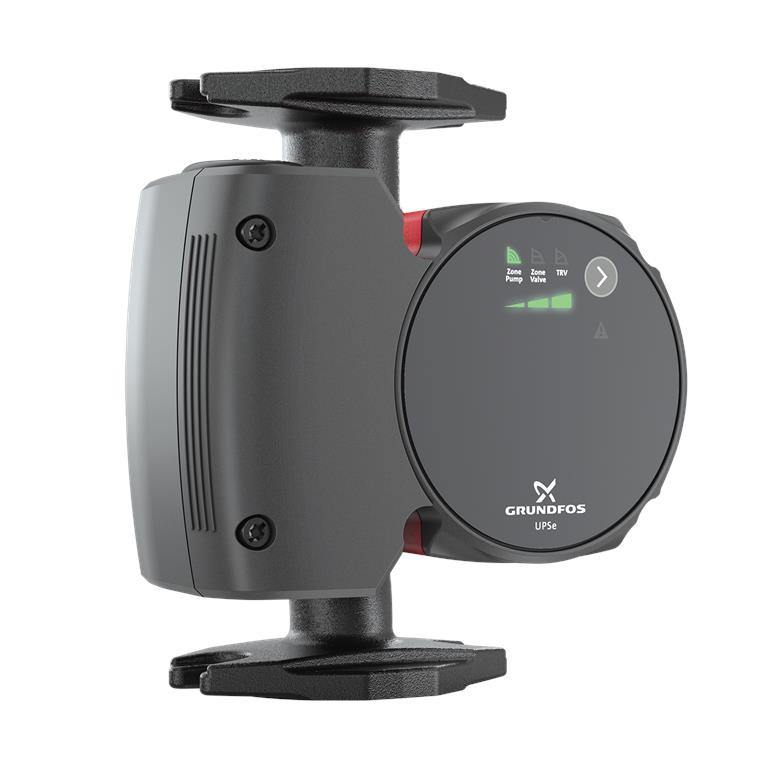

UPSe 15-58 F
Grundfos UPSe 15-58 F, Cast iron flange
UPSe 15-58 F
Grundfos UPSe 15-58 F, Cast iron flange
Grundfos UPSe 15-58 F, Cast iron flange
Specifications
| Product name | UPSe 15-58 F |
| Product No. | 92603106 |
| Rated flow | 8.37 US gpm |
| Rated head | 11.16 ft |
| Rated voltage | 1 x 115 V |
| P1 min. | 3.4 W |
| Max. P1 | 38 W |
| Maximum current consumption | 0.71 A |
| Custom tariff no. | 8413.70.2005 |
| Port-to-port length | 6 1/2 in |
| Pump housing | Cast iron |
| Impeller | Composite |
UPSe 15-58 F
UPSe is a high-efficiency circulator fitted with an electronically commutated motor. It has been designed for circulating liquids in heating systems and offers the highest energy savings on the market.
The pump features a wide range of controls, featuring constant-pressure, proportional-pressure and constant-speed curve, each with three settings, making it suitable for almost any heating application. With the use of the Grundfos GO replacement compatibility check, it is easier than ever to make your selection.
The new toolless, removeable power connector results in fast and easy installation. Fewer callbacks can be expected due to its robust startup, self-venting ability and dry-running protection. Troubleshooting is also fast and easy by using error codes on the pump user interface.
A terminal box with conduit connections is provided for power connection.
