ST838-UTILITY-5

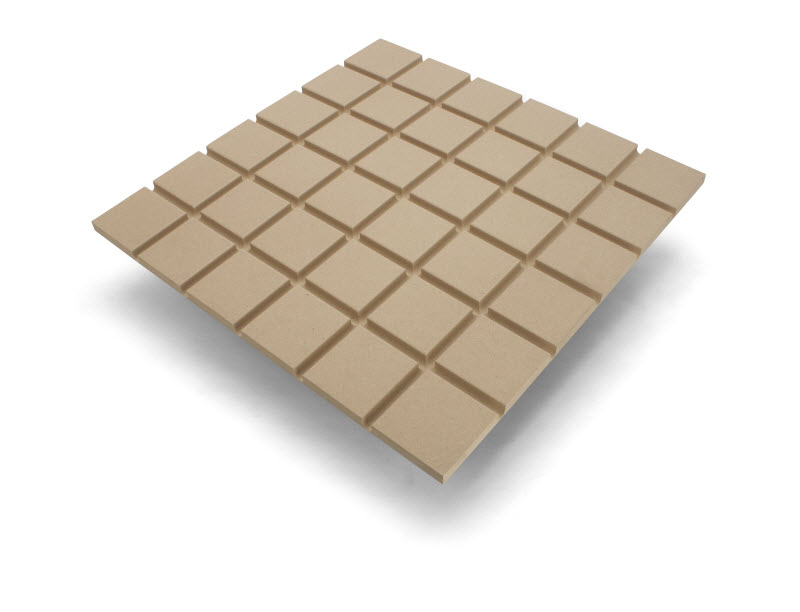

Watts Radiant SmartTrac Utility SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pack of 5
Watts Radiant SmartTrac Utility SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pack of 5
Details
Details:
| Dimensions | 24 in. x 24 in. x 5/8 in. |
| Tube Spacing | 4 in. O.C. |
| Material | MDF (medium density fiberboard) |
| Density | 46 lb/ft3 |
| Internal Bond | 130 lb/in2 |
| Screw Holding, Face | 225 lbs |
| Screw Holding, Edge | 200 lbs |
| Flame Spread Rating | Class 3 |
| Moisture Content | 4 - 6% |
| Thickness Swell | 5% |
| Linear Expansion | 0.3% |
| Approvals | Awarded CARB ULEF Exemption. |
Description
SmartTrac Hydronic Radiant Floor Heating Solution
Watts Radiant’s SmartTrac™ is a non-structural, modular board designed for subfloor, wall and ceiling radiant heating and cooling applications. It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.
Videos
Introducing SmartTrac Radiant Panel Solution
How to Install SmartTrac Modular Panel Systems for Radiant Heating and Cooling
Watts SmartTrac Submittal
