1. Products
  2. ST838-ONE-SAMPLE
Public Pricelist

ST838-ONE-SAMPLE

https://www.pexheat.com/web/image/product.template/15744/image_1920?unique=b1b424d

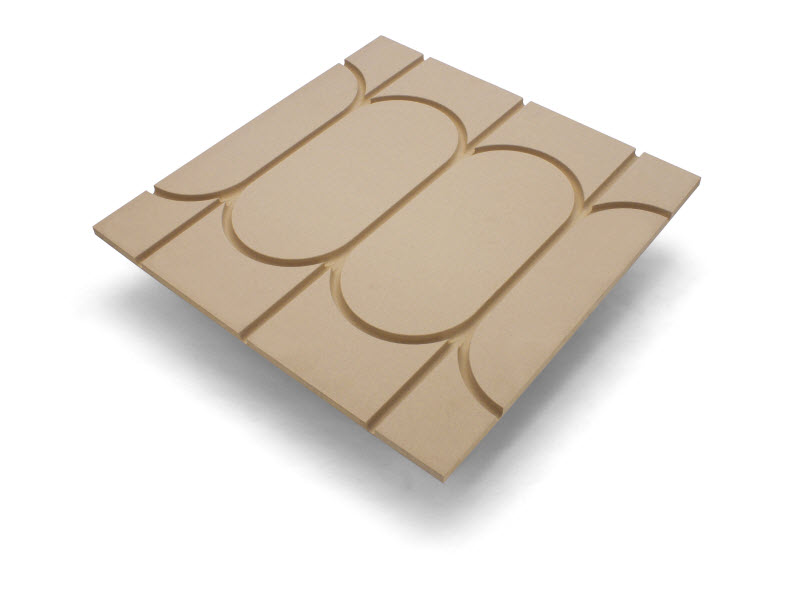

Watts Radiant SmartTrac Standard SubFloor Panel Sample, 1 ft. x 1 ft. for 3/8 in. Tubing

$ 0.00 $ 0.00 0.0 USD

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    ST838-ONE-SAMPLE

    Watts Radiant SmartTrac Standard SubFloor Panel Sample, 1 ft. x 1 ft. for 3/8 in. Tubing

      $ 0.00 $ 0.00 0.0 USD

      $ 0.00

      Not Available For Sale

      This combination does not exist.

      Watts Radiant SmartTrac Standard SubFloor Panel Sample, 1 ft. x 1 ft. for 3/8 in. Tubing

      Details:

      Dimensions24 in. x 24 in. x 5/8 in.
      Tube Spacing8 in. O.C.
      MaterialMDF (medium density fiberboard)
      Density46 lb/ft3
      Internal Bond130 lb/in2
      Screw Holding, Face225 lbs
      Screw Holding, Edge200 lbs
      Flame Spread RatingClass 3
      Moisture Content4 - 6%
      Thickness Swell5%
      Linear Expansion0.3%
      ApprovalsAwarded CARB ULEF Exemption.

      SmartTrac Hydronic Radiant Floor Heating Solution

      SmartTrac is a non-structural, modular panel system, designed to simplify radiant heating and cooling installations in subfloor, wall and ceiling applications.

      Easy to configure and quick to install, SmartTrac is a flexible solution for any new construction or remodeling project.

      It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.

      SIMPLE
      One-panel solution

      THIN
      Ultra low profile, 5/8 in. (16 mm), Designed for 3/8 in. Tubing

      CLEAN
      No messy silicone required

      EASY TO INSTALL
       Significantly reduce installation time

      LIGHTWEIGHT
      2-1/2 lbs. (1 kg) per square foot

      FAST
      Eliminate schedule and curing delays

      FLEXIBLE
      Configure for any space

      GREENMinimum 92% recycled content, CARB ULEF exempt

      RESPONSIVE
      Responds faster than concrete




      SmartTrac Panels SmartTrac works with Watts Radiant’s RadiantPERT™ and RadiantPEX+™ Tubing


      SmartTrac Subfloor Radiant Under Hardwood Flooring SmartTrac Subfloor Radiant Under Tile
