ST838-ONE-5

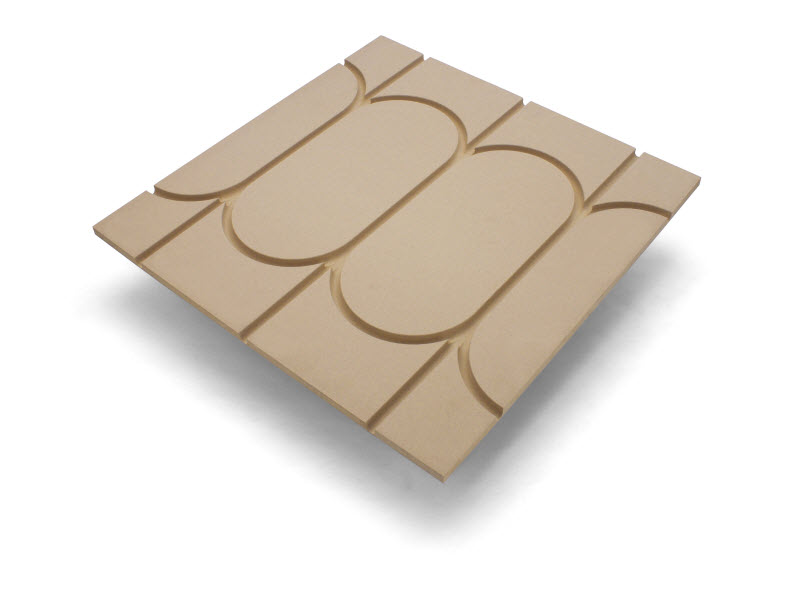

Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pack of 5

$ 226.96 $ 226.96 226.96 USD

$ 226.96

This combination does not exist.

Add to Cart

Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pack of 5

Details

Details:

Dimensions	24 in. x 24 in. x 5/8 in.
Tube Spacing	8 in. O.C.
Material	MDF (medium density fiberboard)
Density	46 lb/ft3
Internal Bond	130 lb/in2
Screw Holding, Face	225 lbs
Screw Holding, Edge	200 lbs
Flame Spread Rating	Class 3
Moisture Content	4 - 6%
Thickness Swell	5%
Linear Expansion	0.3%
Approvals	Awarded CARB ULEF Exemption.

Description

SmartTrac Hydronic Radiant Floor Heating Solution

SmartTrac is a non-structural, modular panel system, designed to simplify radiant heating and cooling installations in subfloor, wall and ceiling applications.

Easy to configure and quick to install, SmartTrac is a flexible solution for any new construction or remodeling project.

It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.

SIMPLE One-panel solution	THIN Ultra low profile, 5/8 in. (16 mm), Designed for 3/8 in. Tubing
CLEAN No messy silicone required	EASY TO INSTALL Significantly reduce installation time
LIGHTWEIGHT 2-1/2 lbs. (1 kg) per square foot	FAST Eliminate schedule and curing delays
FLEXIBLE Configure for any space	GREENMinimum 92% recycled content, CARB ULEF exempt
RESPONSIVE Responds faster than concrete


SmartTrac Panels	SmartTrac works with Watts Radiant’s RadiantPERT™ and RadiantPEX+™ Tubing


SmartTrac Subfloor Radiant Under Hardwood Flooring	SmartTrac Subfloor Radiant Under Tile
