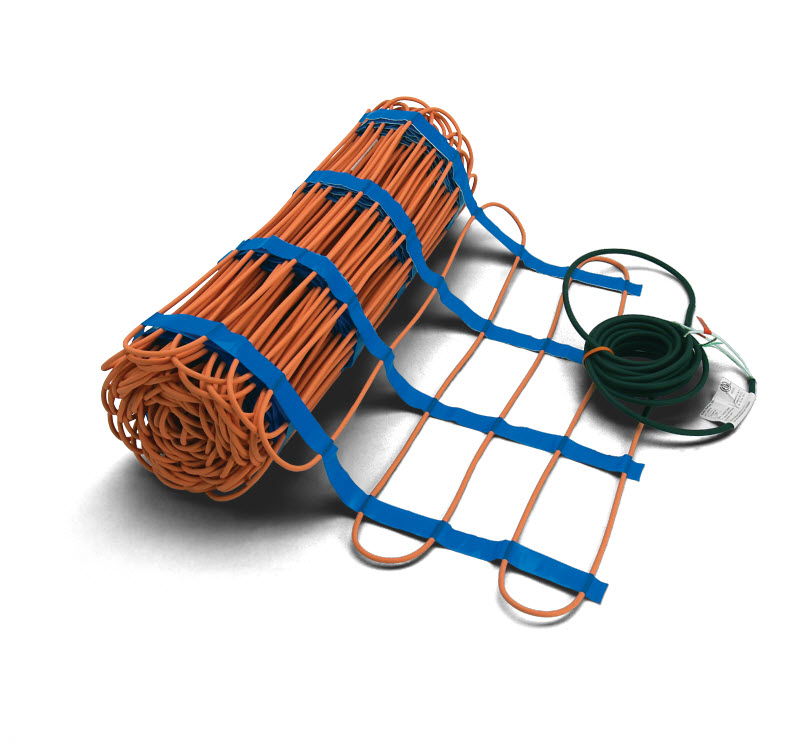

Watts SunTouch ProMelt Mat, 2 ft. x 8 ft., 50W/sqft, 240V

318.40 318.40 318.40000000000003 USD

318.40

Not Available For Sale

    This combination does not exist.

    ProMelt | Snow and Ice Melting Electric Mat

    Description

    With winter comes beautiful snowfalls that bring stunning scenery and fun activities. Unfortunately, a snowfall can also bring slippery walk paths, snow covered driveways, and damaged surfaces caused by snow-clearing. ProMelt™ snow melting systems provide you with the perfect solution to these problems.

    Electric

    Slab-embedded cables generate heat when the system detects snow. Electric systems are ideal for smaller areas and locations with less frequent snowfall.

    Hydronic

    Fluid filled tubing is used to heat the slab when snow is detected. Hydronic systems can be paired with high efficiency heat sources to reduce operating cost.

    ProMelt Electric Mats and Cable

    • Polyurethane outer wire jacket for superior flexibility, abrasion & tear resistance
    • Cable is best option for stairs and curves
    • Mats save time in securing rows of cable

    ProMelt Controls

    • Available for electric and hydronic snow melting systems
    • In-slab and aerial sensor options ProMelt Hydronic Panels
    • Pre-built panels include all components needed for hydraulic isolation, temperature control and circulation
    • Professional appearance and a factory warranty

    ProMelt Hydronic Panels

    • Pre-built panels include all components needed for hydraulic isolation, temperature control and circulation
    • Professional appearance and a factory warranty

    Details:

    Amp. Draw3.3
    Supply Voltage240 VAC, 1-Phase
    Maximum Circuit Load50 Amps
    Wire Spacing3 ft.
    Mat Width2 ft.
    Heating Density50 W/sf 170 BTUh/sf
    Min. Bend Radius1 inch
    Max. Exposure Temperature (continuous and storage)221°F (105°C)
    Max. Exposure Temperature (short-term for asphalt covering)285°F (140°C)
    Min. Installation Temperature40°F (4.5°C)
    Length8 ft.
    Width2 ft.
    Amps3.3
    Ohms68-84
