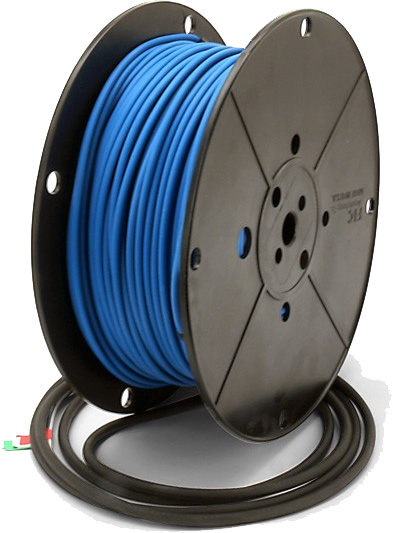

SH15240200ST

Item Details:

Length (Feet)	590
Coverage @ 4 in Spacing (sqft)	200
Output @ 4 in. Spacing	15 W/sqft (51 BTUh/sqft)
Coverage @ 6 in Spacing (sqft)	297
Output @ 6 in. Spacing	10 W/sqft (34 BTUh/sqft)
Supply Voltage (VAC)	240
Current Draw (Amps)	12.5
Resistance (Ohms)	15-20
Power Lead	10' Long, 14 ga.
Outer Jacket	Polyurethane
Ground Plane	Full Coverage Braided Copper
Insulation	ETFE
Heating Elements	Dual, Copper
Bend Radius	1 in.
Max Exposure Temp	194 F
Min Installation Temp	50 F

SlabHeat Electric Indoor Slab Heating

Enjoy the simplicity of electric indoor floor heating and turn cold concrete floors into a welcoming comfort. SlabHeat is ideal for basements, garages, sunrooms, offices, warehouses, and countless other interior slab projects.

Operating a SlabHeat system couldn't be easier. Simply connect a SunStat Control or Relay directly to the SlabHeat cable with either 120 or 240 VAC line power. Each SunStat automatically turns the system on and off when needed.

What Is Electric Slab Heating?

SlabHeat is an electric heating cable used solely for indoor applications. It is perfect for new construction or remodeling projects.

Installation

• Can be installed in a slab cap, a new slab or over an existing slab.
• Cable can be spaced depending on your warming needs.

Technical

• Single point connection.
• Available in 120VAC and 240VAC
•


1. Polyurethane outer jacket
2. Foil shield
3. Braided copper ground plane
4. High temp ETFE element covering
5. Oxygen-free copper alloy heating elements
