RFS-90x200-328

R-flex Single, 90mm (3.5 in.) (3.5 in.) x 200mm OD Jacket, 328 ft. Coil

    $ 25,989.39 $ 25,989.39 25989.39 USD

    $ 25,989.39

    This combination does not exist.

    Add to Cart

    R-flex Single, 90mm (3.5 in.) (3.5 in.) x 200mm OD Jacket, 328 ft. Coil

    Technical Information:

    Nominal ID90 mm (3-1/2 in.)
    PEX ID73.6 mm (2.90 in.)
    PEX OD90 mm (3.54 in.)
    Jacket OD200 mm (7.90 in.)
    Bend Radius43.4 in.
    Volume gal/100 ft.34.3 gal.
    Insulation Thickness1.74 in.
    Casubg R-value6.28
    Tubing MaterialOxygen Barrier Pex
    Jacket MaterialDouble Wall HDPE
    ManufacturerWatts Radiant
    Operating Temperature & Pressure200 deg F @ 80 psi
    Operating Temperature & Pressure180 deg F @ 100 psi
    Operating Temperature & Pressure73 deg F @ 160 psi

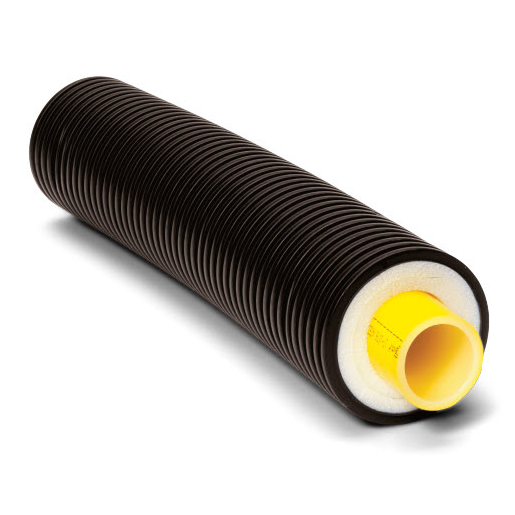

    R-flex Insulated Piping System

    R-flex is a flexible pre-insulated PEX with a corrugated, double-wall HDPE cover suitable for direct burial. R-flex is manufactured in accordance with DIN 16892/16893, with a DIN 4726 oxygen barrier.

    Uses:

    • Hydronic heating
    • Hydronic snow melting
    • District heating
    • Commercial and process piping
    • Geothermal
    • Agricultural piping
    • Biomass heat sources
    • Wood-fired boilers
    • Solar
    • Cooling towers & chilled water systems
    Note: A cut charge will be incurred with custom cut lengths. Cut Charge Standard is for cuts in 25 foot increments (i.e. 25', 75', 150'). Cut Charge Non-Standard is for any other length increment,(i.e. 80', 105', 170').
