Technical Information:

Nominal ID	75 mm (3 in.)
PEX ID	61.4 mm (2.42 in.)
PEX OD	75.0 mm (2.95 in.)
Jacket OD	200 mm (7.90 in.)
Bend Radius	31.5 in.
Volume gal/100 ft.	23.9 gal.
Insulation Thickness	20.5 in.
Casubg R-value	7.4
Tubing Material	Oxygen Barrier Pex
Jacket Material	Double Wall HDPE
Manufacturer	Watts Radiant
Operating Temperature & Pressure	200 deg F @ 80 psi
Operating Temperature & Pressure	180 deg F @ 100 psi
Operating Temperature & Pressure	73 deg F @ 160 psi

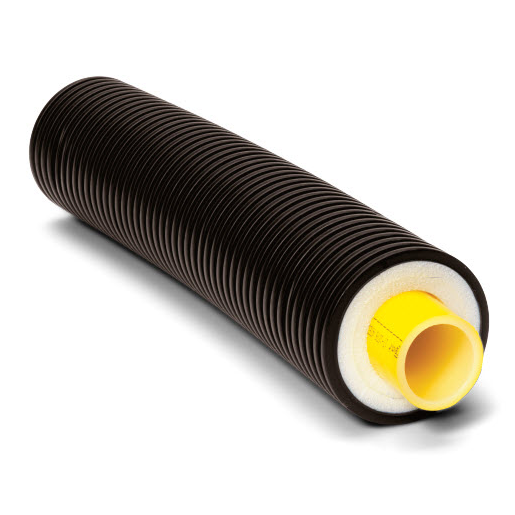

R-flex Insulated Piping System

R-flex is a flexible pre-insulated PEX with a corrugated, double-wall HDPE cover suitable for direct burial. R-flex is manufactured in accordance with DIN 16892/16893, with a DIN 4726 oxygen barrier.

Uses:

• Hydronic heating
• Hydronic snow melting
• District heating
• Commercial and process piping
• Geothermal
• Agricultural piping
• Biomass heat sources
• Wood-fired boilers
• Solar
• Cooling towers & chilled water systems

Note: A cut charge will be incurred with custom cut lengths. Cut Charge Standard is for cuts in 25 foot increments (i.e. 25', 75', 150'). Cut Charge Non-Standard is for any other length increment,(i.e. 80', 105', 170').
