PT032081-2
1/2 in.Watts Radiant RadiantPERT x 2 ft. Sample
1/2 in.Watts Radiant RadiantPERT x 2 ft. Sample
Technical Information:
| Nominal ID | 1/2 in. |
| OD | .625 in. |
| Wall Thickness | .070 in. |
| Avg. ID | .475 in. |
| Bend Radius | 3.125 in. |
| Volume gal/100 ft. | .96 gal. |
| Length | 2 ft. |
| Material | Radiant PERT |
| Manufacturer | Watts Radiant |
| Operating Temperature & Pressure | 180 deg F @ 80 psi |
| Operating Temperature & Pressure | 73.4 deg F @ 160 psi |

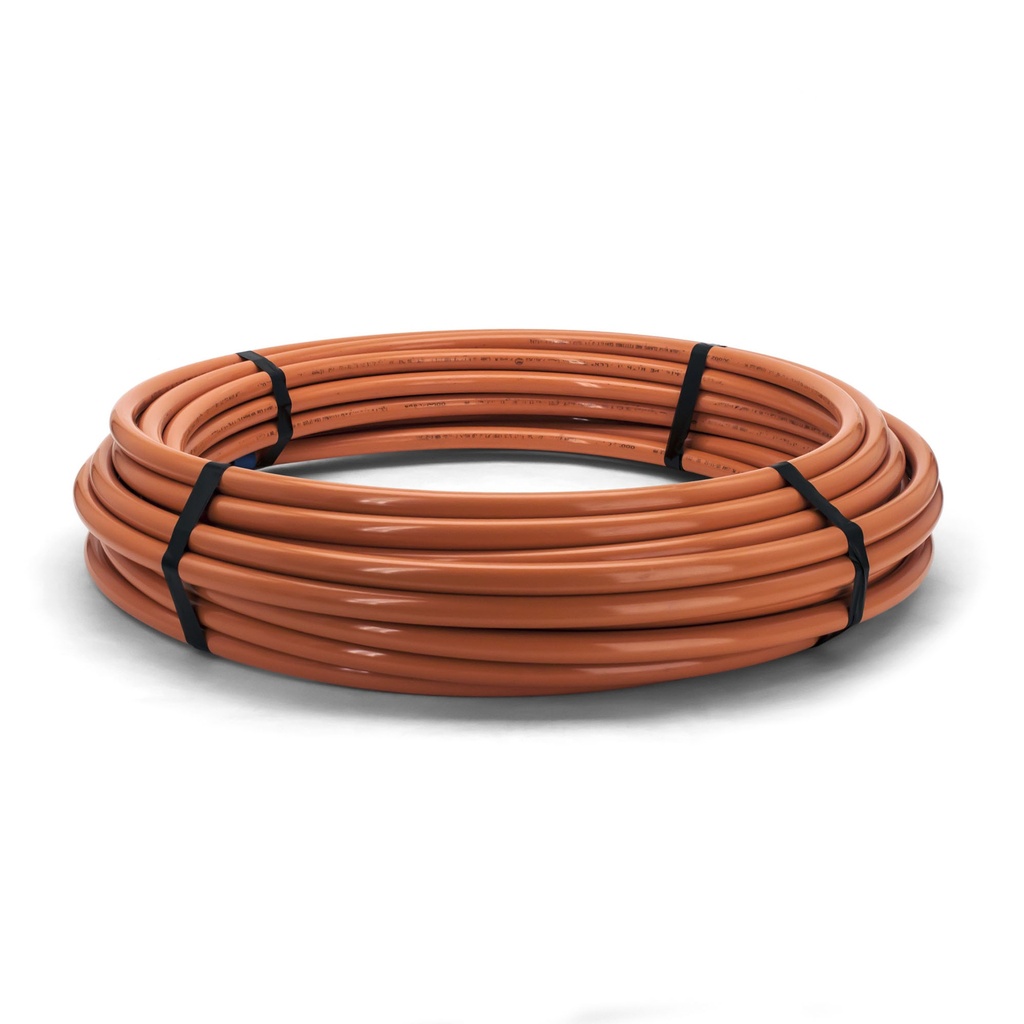

RadiantPERT | Polyethylene Raised Temperature Tubing with Oxygen Barrier - Recyclable Radiant Tubing recycle
RadiantPERT polyethylene raised temperature (PE-RT) tubing is constructed with five layers of material, giving it significant strength. The core and outermost layer are PE-RT, and sandwiched in the middle is an integral ethylene vinyl alcohol (EVOH) oxygen barrier. At the same time the five-layer tubing is more flexible and easier to install than other piping materials used in hydronic radiant heating, cooling, snow melting, and distribution piping applications.
RadiantPERT is manufactured with Dowlex™ 2344, which offers high temperature resistance and long life without cross-linking. The tubing has ratings up to 180°F (82°C) at 80 psi, and the EVOH barrier limits oxygen diffusion through the walls of the tubing to less than 0.10/m3/day at 104°F (40°C) water temperature.
RadiantPERT uses the same fast and reliable Watts Radiant connection systems that have been used with PEX for years, including CinchClamps™ stainless steel connectors, CrimpRings™ precision-formed, ductile copper connectors, and T-20 compression fittings.
The recyclable RadiantPERT tubing is certified to ASTM F2623 for PE-RT SDR 9 Tubing by NSF and CSA, and all RadiantPERT products are backed by a comprehensive 25-year warranty from Watts Radiant.
