MINIBTHUS-24045

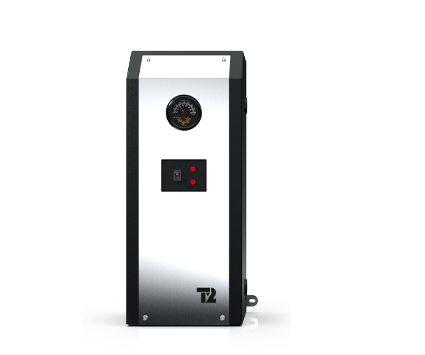

Thermal2000 mini BTH 4.5kw, 15k BTU/hr Electric Boiler, 240VAC
MINIBTHUS-24045
Thermal2000 mini BTH 4.5kw, 15k BTU/hr Electric Boiler, 240VAC
Thermal2000 mini BTH 4.5kw, 15k BTU/hr Electric Boiler, 240VAC
| Voltage (VAC/Hz/Phase) | 240 VAC / 60 Hz / 1 Phase |
| Power (kW) | 4.5 |
| Heat Output (BTU/hr) | 15354 |
| Current Load (Amps) | 18.8 |
| Elements (kw) | 1 x 4.5 kW |
| Stages | 1 |
| Electrical Supply (Awg) | 10 Cu, 10 Al |
| Breaker (Amp) | 30 |
100% compact. 100% efficient. 100% comfort.
Thermo 2000’s mini BTH electric boilers are ideal for all hydronic heating needs in single-family homes and condominiums. Compact design. Ultra-silent. Easy to install on a wall. That’s what minis are all about! But they are truly big on performance. These residential electric boilers waste no energy and do not produce any combustion or GHG emissions. Mini BTH electric boilers are a highly energy efficient and green alternative. Thermo 2000’s minis are covered by a 15-year warranty on the reservoir, and 2-year warranty on electrical and mechanical parts.
ASME Certified
Thermo2000 miniBTH Manual
