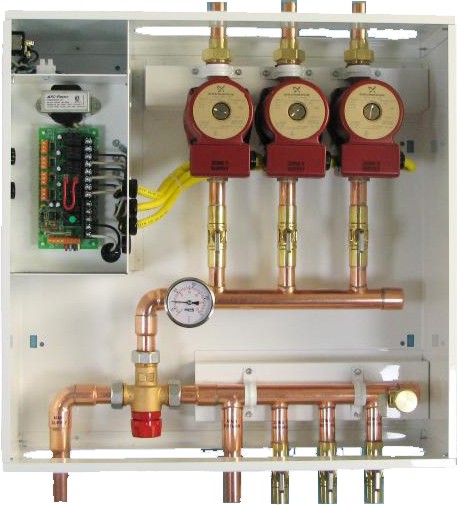

2 Zone Compact Station Model Housing

• Consist of a pre-piped and pre-wired unit to be used with Primary/Secondary piped hydronic systems.
• White Powder Coat Appliance Finish
• 3/4" Sweat Bronze Body Pumps UP15-42BUC7
• Intergral Pump Flow Check Valves
• Thermostatic 3-Way Mixing Valve
• Organic Acid Bath Pollished Copper Piping

Low Temperature Zones

Used for:

• In-Floor Heating

The LTV / CTV series 100 Stations are also supplied with a manually
adjustable 3 way mixing valve. This enables a consistent temperature of
“tempered” water to be delivered to the “Low” temperature zones.

Circuit Board Technology

New circuit board technology enables the optimum in complete boiler
system control, and simplifies wiring of the system.

Features within the circuit board include:

• 2 Zone Electronic Relay Control Board
• LED Indicator Lightes
• Boiler control contacts
• Various timer settings for pump exercise
