HGSC

https://www.pexheat.com/web/image/product.template/16935/image_1920?unique=948da09

Calefactio Service Center

$ 37.88 $ 37.88 37.88 USD

$ 37.88

Not Available For Sale

    This combination does not exist.

    Contact Us

    HGSC

    Calefactio Service Center

      $ 37.88 $ 37.88 37.88 USD

      $ 37.88

      Not Available For Sale

      This combination does not exist.

      Calefactio Service Center

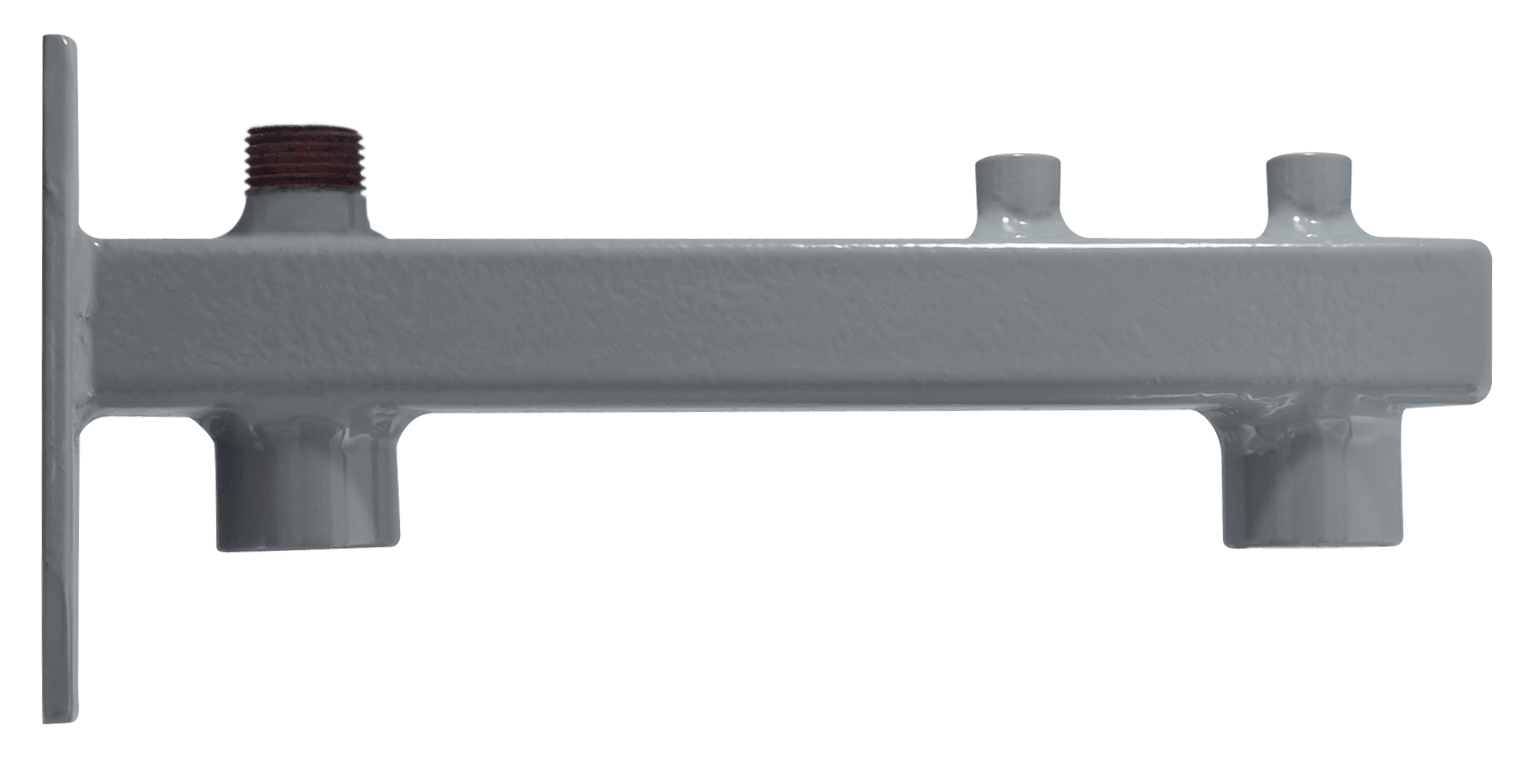

      Item Details

      FNPT (A)1/2 in.
      FNPT (B)1/2 in.
      FNPT (C)1/8 in.
      MNPT (D)1/2 in.
      Length10 3/4 in.
      Height4 1/2 in.
      Width1/2 in. 2 3/8 in.

      Link your heating system to the 1/2 in. FNPT connection A . Connect directly a heating expansion tank (HGT-15, HGT-30, HGT-60M and HGT-60), with the Service valve (HGSV12) on the 1/2 in. FNPT connection B. Then, on connections C (1/8 in. FNPT), connect an automatic air vent (R8818) or a pressure gage (#GAGE0-100BOTTOM or #GAGE0-30BOTTOM). On connection D (1/2 in. MNPT) you can either connect your GMP or simply the cold water supply.
