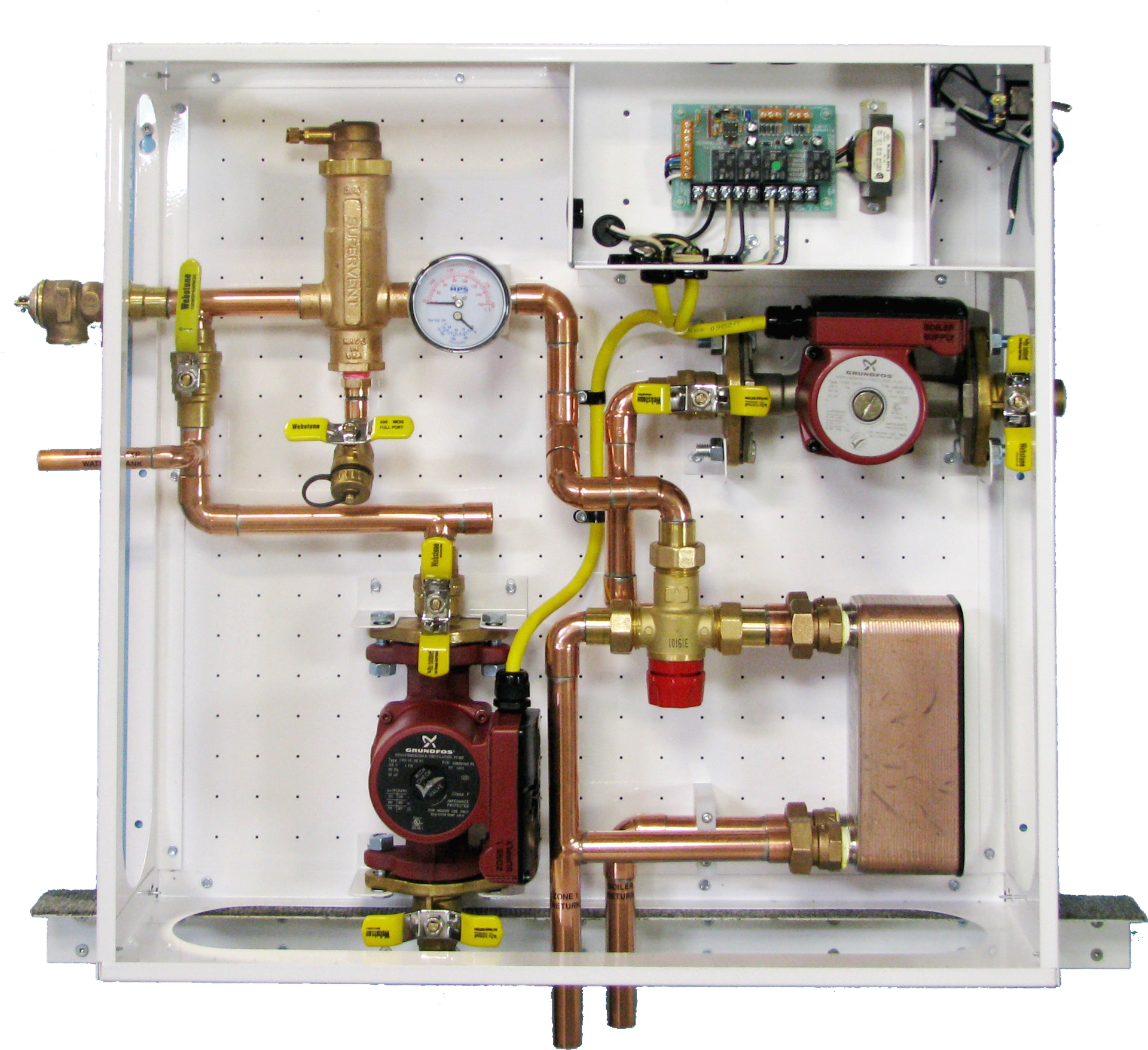

Heat Exchanger Pump Station, Stainless Domestic Pump, Auto Sensing Heating Pump

• Used for separating hydronic systems
• Consist of a pre-piped and pre-wired unit to be used with Primary/Secondary piped hydronic systems
• Dimensions: 27" x 25" x 8.5"
• Available with or without a heating mixing valve
• Comes with one or two heating zones and a primary domestic circulator
• Available with a 20, 30 or 50 plate heat exchanger
• White Powder Coat Appliance Finish
• Organic Acid Bath Polished Copper Piping
• 3/4" Flange Body Pumps UPS 15-58FC on heating side of exchanger & a UPS 15-55SFC (Stainless) on the domestic side.
• Pumps can be upgraded.
• Electronic Relay Control Board
• Pump Duty Cycle Timer Options
• LED Indicator Lights
• System Bleed Purge Valve
• Return Ball Valves
• Integral Pump Flow Check Valves
• Additional Components:
• T&P Valve
• Air Eliminator
• Tridicator
