H-74273W

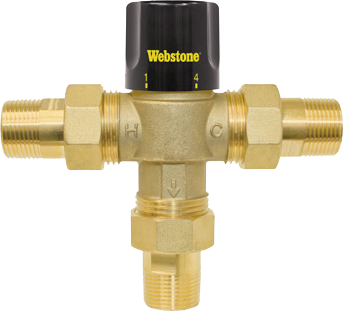

Webstone 3/4 in. NPT Thermostatic Mixing Valve w/check (104F-176F)
- Mixes Hot and Cold Water to Pre-Set Output Temperature
- Heavy Duty Forged Brass Construction
- Integral Check Valve on Inlet
- Temperature Locking Handle on Select Models
- Compatible With G1 Fittings
- Replacement Checks Also Available
- Models available to satisfy all state and federal low-lead laws
- Available in PEX, FIP, MIP, SWT, PRS, GMT
- Certified to NSF/ANSI 61 & 372
- ASSE 1017
- CSA B125.3
- P65-Lead
Specifications;
| G1 Union | 1 in. |
| MIP | 3/4 in. |
| Thermostatic Mixing Valve | 104°F - 176°F |
| Marerial | Brass |
| Work Pressure Range | 30-150 psi |
