H-44443WPR

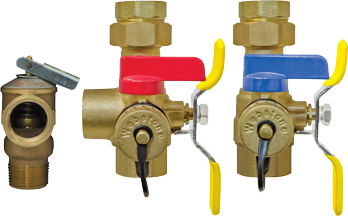

Webstone EXP E2 Compact Tankless Water Heater Service Valves, 150 PSI Relief Valve
Product Specs
Set of 2 Heavy Duty Forged Brass Ball Valves
Full Port Main Flow Channel
Large Drain Port Outlets
Color Coded Aluminum Handles
Uniquely Designed Lever/Wing Handle
Choice of 3 Pressure Relief Valves
FIP Union with Choice of PEX, Press, Push, SWT or FIP Connections
Sizes 3/4" – 1"
Advantages
Compact Size
Easy Identification of Hot & Cold Valves
Quicker, Consistent Quality Installations
Fewer Leak Paths
Allows for Easy Cleaning, Flushing, & Diagnostic Testing
Patented Technology
Specifications:
| Connection Type | FIP Union × FIP |
| Connection Type | FIP Union × FIP |
| SIZE (in) | 3/4 |
| SIZE (in) | 3/4 |
| MaxTemp | 210ºF Max |
| MaxTemp | 210ºF Max |
| Certifications | Certified to NSF/ANSI 61 & 372, NSF/ANSI 14 |
| Certifications | Certified to NSF/ANSI 61 & 372, NSF/ANSI 14 |
| Lead-Free | Yes |
| Lead-Free | Yes |
| Pressure Relief | 30 PSI / 500,000 BTU/HR |
| Pressure Relief | 150 PSI / 500,000 BTU/HR |
