H-41414

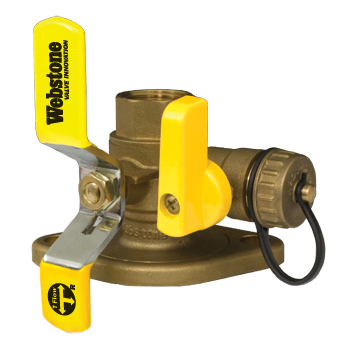

Webstone 1 IPS ISOLATOR With Multi Function Drain & Rotating Flange
- Easily Isolates the Pump for Replacement
- Prevents Electrolysis and Eliminates Galvanic Corrosion
- Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
- Flange Features a Conical Inlet to Minimize Turbulence
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Fits Virtually Any Standard Circulator Pump
- Saves 63 Minutes
- Replaces 8 Components
- Eliminates 7 Leak Paths
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
- Available in Lead-Free
- Available in SWT, PRS
- Available in FIP x FLG, SWT x FLG, PRS x FLG, PEX x FLG
- Certified to NSF/ANSI/CAN 61 & 372
- NSF/ANSI 14
- P65-Lead
Specifications;
| Size | 1 in. IPS x Flange |
| Material | Brass |
