CTV-413

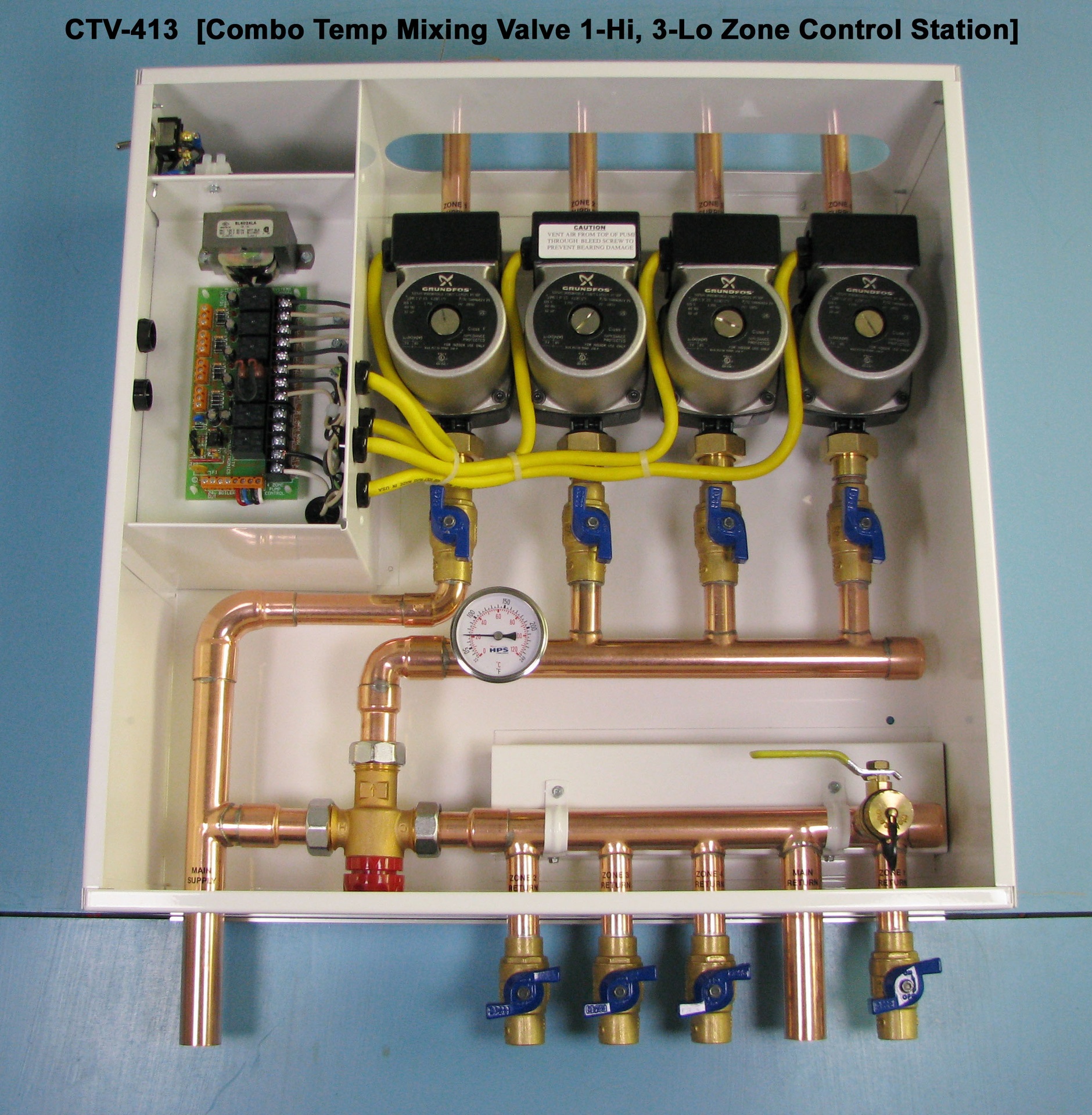

HPS Combo Temp Mixing Valve 1-Hi 3 Lo Zone Station, UPS15-42RUC7, SWT
HPS Combo Temp Mixing Valve 1-Hi 3 Lo Zone Station, UPS15-42RUC7, SWT
Description
4 Zone 1-High Temp, 3 Low Temp Mixing Valve, Sweat Pump Zone Control Station
- 4 Zone Station Model Housing
- White Powder Coat Appliance Finish
- 3/4" Sweat Composite Body Pumps "UP15-42RUC7"
- Thermostatic 3-Way Mixing Valve
- Organic Acid Bath Polished Copper Piping
- System Bleed Purge Valve
- 4 Zone Electronic Relay Control Board
- Supply & Return Ball Valves
- Priority Zone One Feature
- Pump Duty Cycle Timer Options
- Integral Pump Flow Check Valves
- LED Indicator Lights
Note: Item may differ from Image
High Temperature Zones
Used for:
- High Temp Baseboard or Fan Coil Zones
- Indirect Domestic Hot Water Heater Zone
Low Temperature Zones
Used for:
- Low Temp In-Floor Heating Zones
Circuit Board Technology
New circuit board technology enables the optimum in complete boiler
system control, and simplifies wiring of the system.
Features within the circuit board include:
- 4-6 Zone Electronic Relay Control Board
- LED Indicator Lightes
- Boiler control contacts
- Various timer settings for pump exercise
