Description

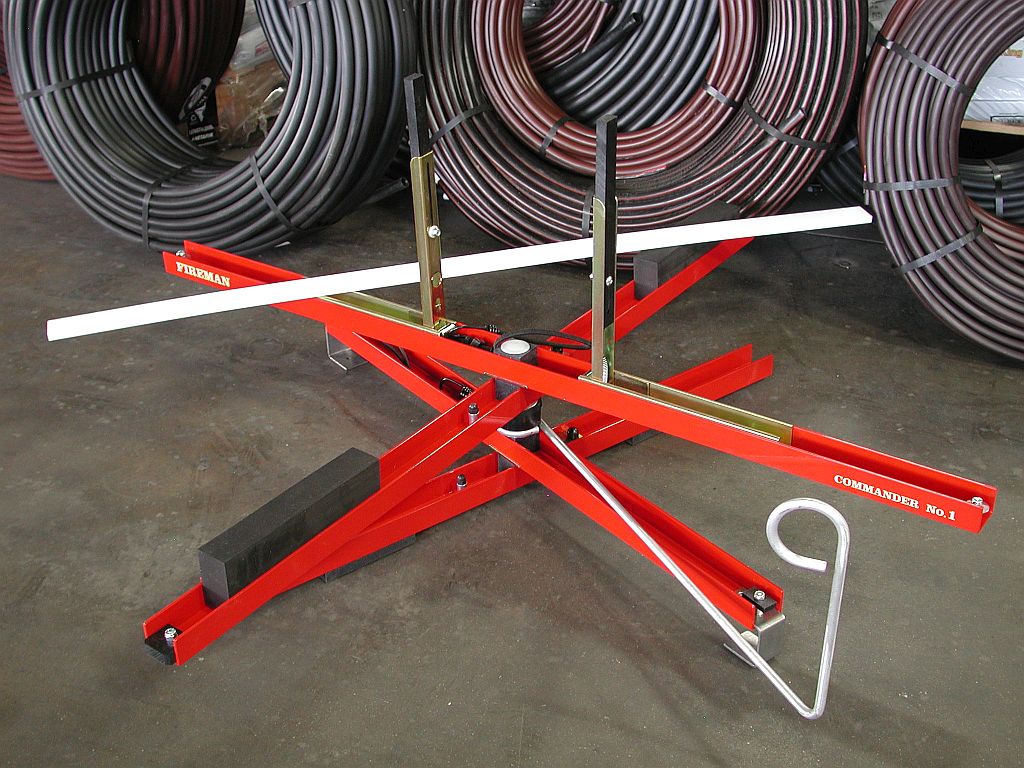

Commander Tubing Unwinder
FEATURES:
- Quick set up with self-locking arms and legs
- Easy self-locking adjustable inner tube guides
- ‘Smart load’ tube side-loading capability to prevent back injuries and allow one man operation
- Quick de-mounting and compact design for storage and easy transport (carry strap included)
- Rugged, reliable design for trouble free use and minimal tool maintenance requirements
SPECIFICATIONS:
Material: 6061 T6 Aluminum Channel; zinc chromate plated steel; stainless steel; UHMWPE plastic
|
Tool dimensions:
|
Length 47”
|
Height 12”
|
Width 2.75”
|
Weight 17 lbs.
|
|
Tube loading capacity:
|
100 lbs | . |
Max Tube roll O.D.:
|
45” |
|
Max Tube roll height:
|
16” |
Minimum Tube roll I.D.:
|
11.5” |
 |
 |
 |
 |
