COMBOU 70-24US
Thermal2000 bth ULTRA 24kw, 82k BTU/hr Combination Electric Boiler/Water Heater, 70 Gal.
COMBOU 70-24US
Thermal2000 bth ULTRA 24kw, 82k BTU/hr Combination Electric Boiler/Water Heater, 70 Gal.
Thermal2000 bth ULTRA 24kw, 82k BTU/hr Combination Electric Boiler/Water Heater, 70 Gal.
| Voltage (VAC/Hz/Phase) | 240 VAC / 60 Hz / 1 Phase |
| Power (kW) | 24 kW |
| Heat Output (BTU/hr) | 81,888 BTU/hr |
| Current Load (Amps) | 100 Amps |
| Elements (kw) | 4 x 6 kW |
| Stages | 4 |
| Electrical Supply (Awg) | 2 awg Cu, 0 awg A |
| Breaker (Amp) | 125 Amp |
| DHW Production in 10 min (Gal) | 92 |
| DHW Production in 1 hr (Gal) | 210 |
A combination without compromise

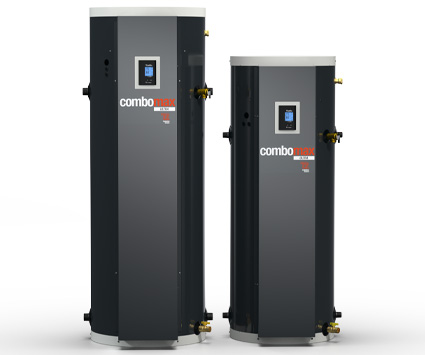

The ComboMax ULTRA is an electric boiler combined with an instantaneous water heater for residential applications. Available in two sizes, the ComboMax ULTRA offers performance levels from 4.5 kW to 29 kW. This 2-in-1 solution can easily heat large buildings of up to 4750 sq.ft. and provide domestic hot water in less than 7 seconds. Almost maintenance-free, it offers incredible energy efficiency! This unit requires less space, provides quality water, and has a long lifespan. What’s more, the ComboMax ULTRA is covered by a 15-year warranty. Thanks to its T2 UltraSmartTM controller, it offers optimal comfort with accurate temperature management.
Thermo2000 Combomax Submittal
