CFV-651-CUSTOM
HPS 6 Zone Combo 5-High 1-Low Mixing Valve Pump Panel - Custom

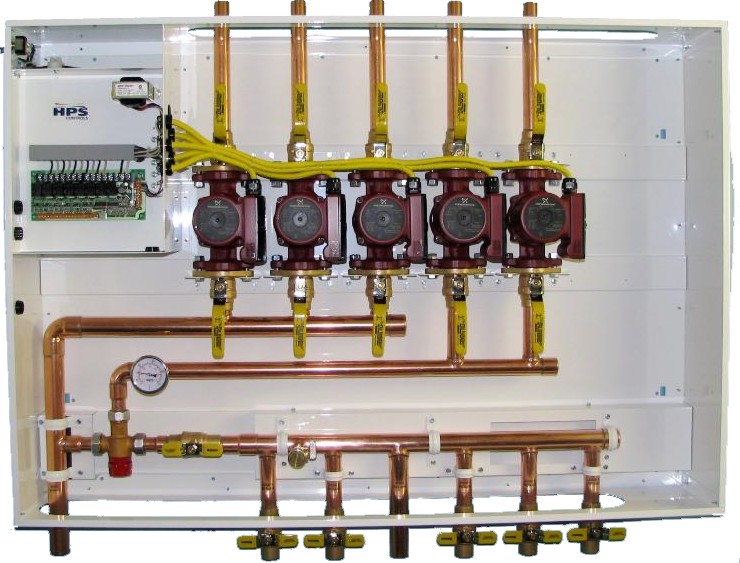

6 Zone 5-High Temp, 1 Low Temp Mixing Valve, Flanged Pump Zone Control Station
- 6 zone station model housing
- White powder coat appliance finish
- 1" flange body pumps UP15-58FC standard
- Variable speed injection pump mixing
- Organic acid bath polished copper piping
- System bleed purge valve
- Return riser globe valve with CV setting
- Webstone "Isolator" ball valve flange set
- Return zone ball valves
- Outdoor reset control & sensor
- Boiler protection control & sensor
- Mixing thermometer & sensor
- 6 zone electronic relay control board
- Priority with priority safe feature
- Pump duty cycle timer options
- Low water cutoff 24V access option
- LED indicator lights
- Integral pump flow check valves
High Temperature Zones
Used for:
- High Temp Baseboard or Fan Coil Zones
- Indirect Domestic Hot Water Heater Zone
Low Temperature Zones
Used for:
- Low Temp In-Floor Heating Zones
Circuit Board Technology
New circuit board technology enables the optimum in complete boiler
system control, and simplifies wiring of the system.
Features within the circuit board include:
- 4-6 Zone Electronic Relay Control Board
- LED Indicator Lights
- Boiler control contacts
- Various timer settings for pump exercise
