BTHULTUS20827

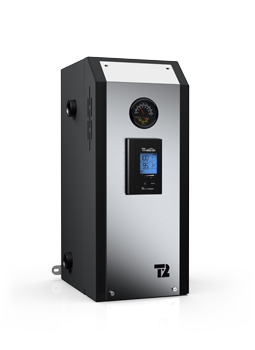

Thermal2000 bth ULTRA 27kw, 92k BTU/hr Electric Boiler, 208VAC
BTHULTUS20827
Thermal2000 bth ULTRA 27kw, 92k BTU/hr Electric Boiler, 208VAC
Thermal2000 bth ULTRA 27kw, 92k BTU/hr Electric Boiler, 208VAC
| Voltage (VAC/Hz/Phase) | 208 VAC / 60 Hz / 3 Phase |
| Power (kW) | 27 kW |
| Heat Output (BTU/hr) | 92,1242 BTU/hr |
| Current Load (Amps) | 75.3 |
| Elements (kw) | 6 x 6 kW |
| Stages | 2 |
| Electrical Supply (Awg) | 4 Cu, 2 Al |
| Breaker (Amp) | 100 Amp |
Maximum efficiency. Optimal performance.
Whether you need to heat a condominium, single-family home or commercial building, bth ULTRA electric boilers are your go-to solution. Ultra-silent and compact, these electric boilers are available in a wide variety of performance levels, from 7kW to 36kW, and with multiple voltage options. Ingenious! The bth ULTRA can also be easily combined with an auxiliary heater for a dual-energy system. It’s green. It’s clean. Thanks to its T2 UltraSmartTM controller, the boilers provide optimal comfort with accurate temperature management. Each electric boiler has a 15-year warranty on the reservoir, and a 2-year warranty on electrical and mechanical parts.
ASME Certified
Thermo2000 bthULTRA Manual
