Fireman Battalion Heavy Duty Pex Tubing Uncoiler

    469.00 469.00 469.0 USD

    469.00

    This combination does not exist.

    Add to Cart

    Fireman Battalion Heavy Duty Pex Tubing Uncoiler



    Battalion Tubing Unwinder

    FEATURES:

    • Quick set up with self-locking arms and legs
    • Easy self-locking adjustable inner tube guides
    • ‘Smart load’ tube side-loading capability to prevent back injuries and allow one man operation
    • Quick de-mounting and compact design for storage and easy transport (carry strap included)
    • Rugged, reliable design for trouble free use and minimal tool maintenance requirements

    SPECIFICATIONS:

    Material: 6061 T6 Aluminum Channel; zinc chromate plated steel; stainless steel; UHMWPE plastic


    Tool dimensions:
    Length 59”
    Height 16”
    Width 2.75”
    Weight 23 lbs.
    Tube loading capacity:
    150 lbs .
    Max Tube roll O.D.:
    46”
    Max Tube roll height:
    17.5”
    Minimum Tube roll I.D.:
    16”

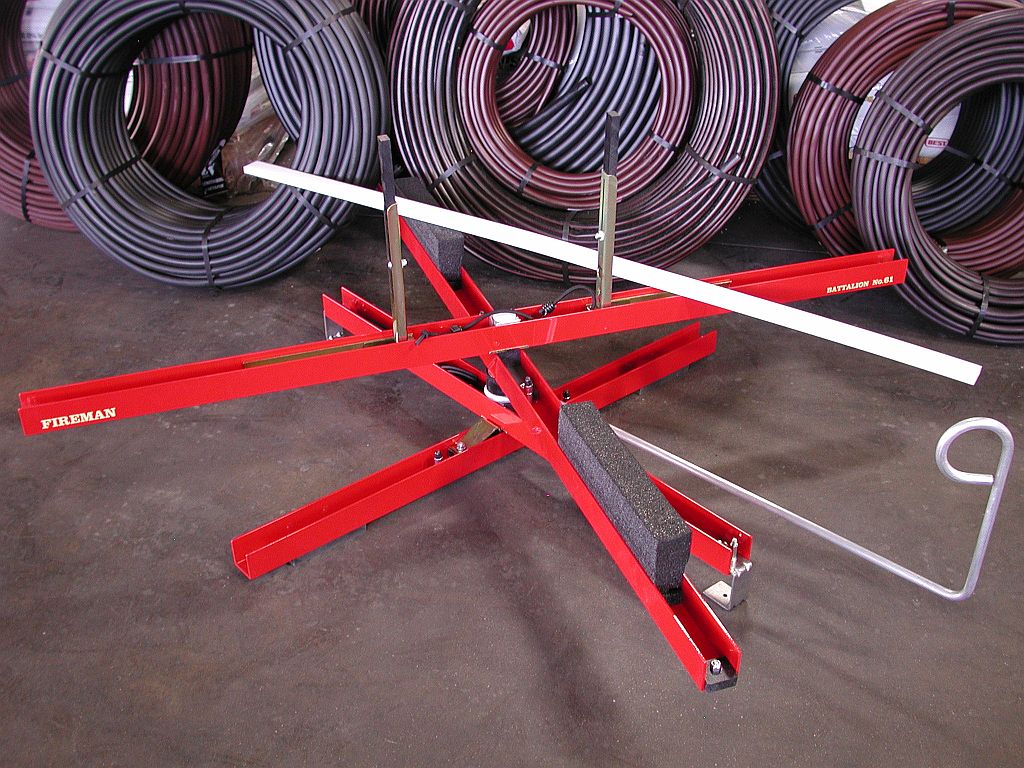

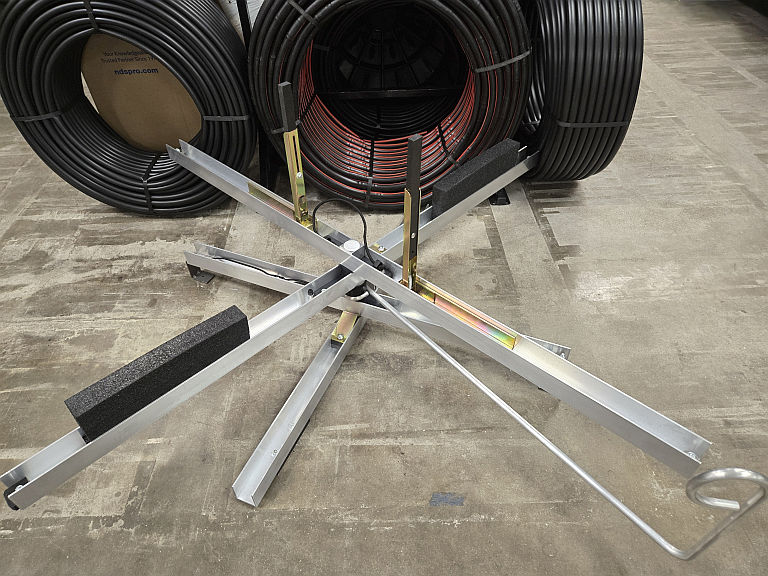

    Battalion Tubing Unwinder Battalion Tubing Unwinder Closed
    Battalion Tubing Unwinder Loading Battalion Tubing Unwinder Loaded



    Battalion No 61 demo
