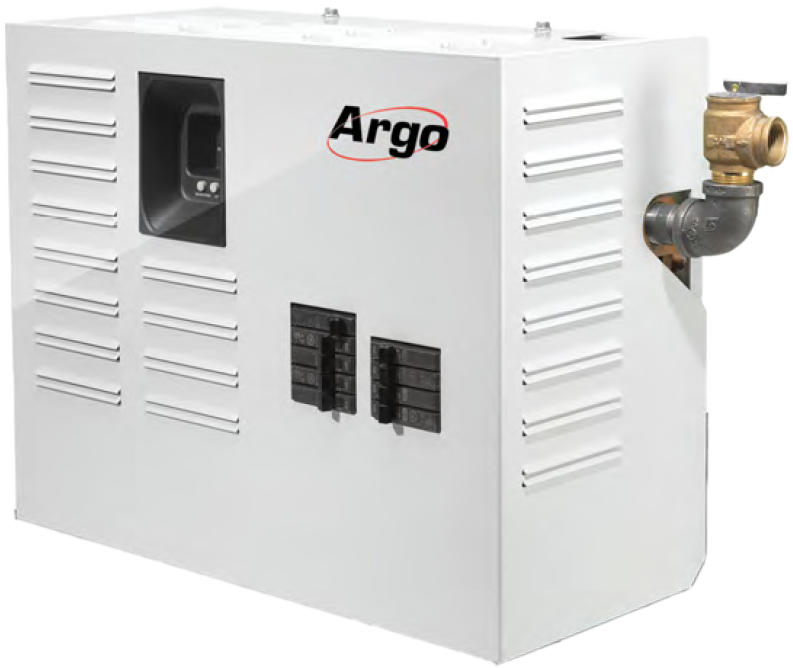

Argo Electric Boilers

Absolute Efficiency– Total Comfort!

Not only is the Argo “AT” Series Electric Boiler 100% efficient, with operating temperatures from 90°F to 180°F, it’s ideal for both low temperature radiant systems and standard hydronic heating in both residential and commercial applications!

2 or 4 Element Configuration & Modular Boiler Configuration

Designed for maximum versatility, the Argo “AT” Series features a 2 Element boiler available in four capacities from 6 kw to 12kw and a 4 Element boiler available in four capacities from 12kw to 24kw. The Argo “AT” Series can also increase its’ capacity to 40kw by “stacking” two boilers together in a Modular Boiler Configuration

Microprocessor Based Control Board

The “AT” features an advanced Microprocessor Control which safely and efficiently controls the elements. Elements energize individually, with additional elements energizing as needed depending on demand. The start-up element is rotated so run time is balanced across all elements promoting longevity. The “AT” Series utilizes a sensor connected to a probe in an immersion well to determine demand. This configuration relays water temperature back to the control board allowing the unit to efficiently maintain steady, even heat using only the elements necessary to satisfy demand. Thus the “AT” Boiler avoids the constant peaks and valleys experienced by others relying on a timer system resulting in short-cycling of the elements that wastes energy and costs the user more in electricity.

Installation, Operation and Maintenance

The Argo “AT” Series features - Diagnostic Indicator Lights, a 30 Second Pre-Purge, an Adjustable Temperature Set Point and Differential and a factory installed Circulator Relay plus on board power for an External System Circulator. Optional components such as Low Water Cut Off, Flow Switch, etc. are easily added via connections on the control board. The “AT” is available in one compact cabinet size for ease of installation. Safety features include Operating Limits with Back-Up, Redundant Relays Per Element and Audible Alarms/Fault Codes.

The Reliability

Argo “AT” Series Electric Boiler features a one piece cast iron heat exchanger and a 20 Year Heat Exchanger Warranty.

Features

• These units have very high output at a very affordable price.

• Adjustable from 90° F to 180° F for use with all types of heating applications. Can be used to supply; Radiant Floor, Snowmelt, Baseboard Radiators, Hydronic Fan Coils, Indirect Domestic Water Heaters, etc.

• They are fully modulating units - they sense the hot water demand and only use enough energy to satisfy that demand.

• 100% Efficient with a 20 Year Warranty, they have long life expectancy without a high cost.

• On-Board individual Circuit Breakers to protect each element

• Not a Potable Water Heater.

Note: Do not buy your tankless unit from a reseller who does not know how to properly install them. There are many considerations that need to be taken for proper unit performance. We will provide custom installation diagrams for your application. Contact Us for more information.
