830-201

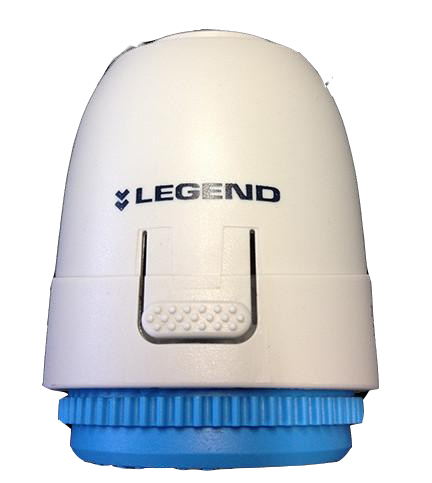

Legend 4-wire circuit actuator with end switch
Legend Circuit Actuator
Description
4-Wire Circuit Actuator 24 volt AC actuator with 36" leads. Includes end switch that closes when valve is fully open.
Features
- Condition in absence of voltage; NC - Normally Closed First Open Function*
- Valve working stroke 0.16" (4mm)
- Class II dust protection
- Opening time at 77°F ≈ 3 minutes
- Working ambient temperature: 32°F - 140°F
- Storage ambient temperature: 13°F - 140°F
- Fluid temperature : 50°F - 212°F
- Mountable in any orientation
- Valve position indicator on top of valve casing
- Double insulated electrical enclosure
- Reliable thermo-electric operation
Item Details
| Dimensions (in.) | 3 x 3.6 x 2.4 |
| Voltage | 24VAC |
| Supply voltage: | 24VAC |
| Max Inrush current: | <300mA (7.2VA) for 2 minutes max |
| Operating current: | 1 Watt (1.0VA) |
| Opening/Closing time: | approx 3.5 minutes |
| End Switch: | |
| Normally Open (NO): | Yes |
| Contacts: | 24VAC, 0.5mA max |
| Contacts: | Makes at about 50% of stroke |
| Wiring info: | |
| 24VAC Power | Yellow wires |
| End switch: | Red wires |
