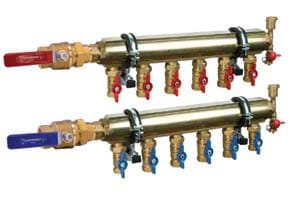

Legend M-8220 High Capacity Manifold Kit 1-1/2 in. OT-63 Brass Bar 4 Port - 4 Brackets
8220-15-4
Legend M-8220 High Capacity Manifold Kit 1-1/2 in. OT-63 Brass Bar 4 Port - 4 Brackets
Legend M-8220 High Capacity Manifold Kit 1-1/2 in. OT-63 Brass Bar 4 Port - 4 Brackets
Details
Item Details:
| Number of Ports | 4 |
| Number of Brackets | 4 |
| Hi-Cap Base Size | 1-1/2 in |
| Dimensions W x H x D (in.) | 22 1/2 x 10 1/4 x 8 1/2 |
Description
Legend M-8220 High Capacity Manifold
Description
M-8220 High Capacity Manifold Base Kit - Base includes supply and return headers, 1-1/2 in. FNPT isolation valves for headers, 1 in. NPT circuit loop isolation valves for supply and return, mounting brackets, and fill & air purger.
The M-8220X Expansion Kit is required to build manifolds with more than 8 ports in 1-1/2 in. and 6 ports in 2 in. sizes. Expansion kit includes 2 manifold unions in place of the 2 fill & purge assemblies.
