800-QT200

https://www.pexheat.com/web/image/product.template/19522/image_1920?unique=934df22

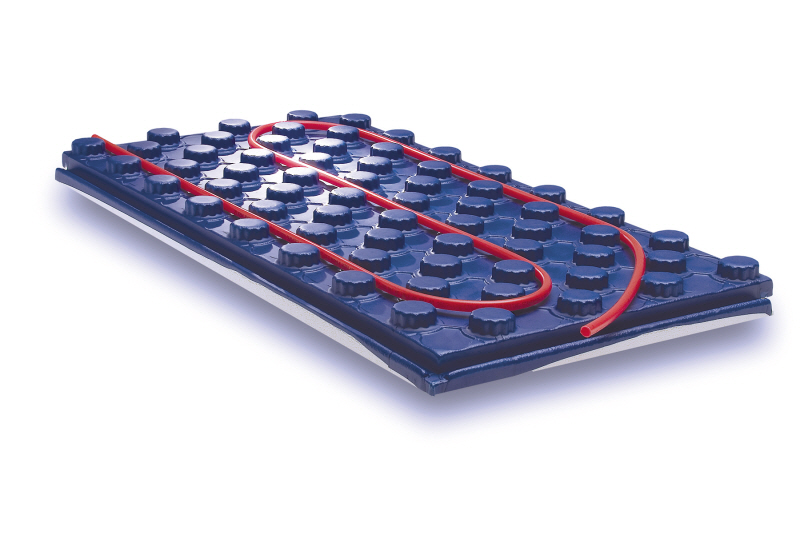

Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 2.8 in. Thick , Box of 10, 80 sqft

$ 287.85 $ 287.85 287.85 USD

$ 287.85

Not Available For Sale

    This combination does not exist.

    Contact Us

    800-QT200

    Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 2.8 in. Thick , Box of 10, 80 sqft

      $ 287.85 $ 287.85 287.85 USD

      $ 287.85

      Not Available For Sale

      This combination does not exist.

      Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 2.8 in. Thick , Box of 10, 80 sqft

      QuickTherm QT200 Data

      Thermal Resistance R-Value/ ASTM C-177 or C-5189 °F . ft2 . hr/Btu
      Thermal Conductivity K-Value.329 Btu/hr . ft .°F
      Density/ASTM C-3032.0 lb/ft3
      Compressive Resistance at 10% Deformation/ASTM D-1621>36 psi
      Water Vapor Permeability/ ASTM E-960.67 Perm-Inches, Max.
      Water Absorption/ASTM C-2724% by Volume Max.
      Dimensional Stability/ ASTM D-21262% Max
      Mold Resistance/ASTM C-1338No Growth
      Panel Size25" x 49"
      Usable Area24" x 48"
      Tubing/ASTMF2623 (PE-RT), ASTM F876 (PEX),ASTM F1281 (PAP)1/2", 5/8", & 3/4"
      Total Thickness Including Pipe Grid2.8"
      Nominal (EPS) Insulation Thickness1"
      Screed Volume in Tube Grid875 Cubic Inches
      Cover StockPolystyrene
      Case Quantity10 panels / 80Sq. Ft.

      Install thousands-of-feet of tubing in just a few hours with QuickTherm™

      QuickTherm™ panels reduce labor costs by making it easy to properly install radiant tubing. There's no need to tie, clip, or staple tubing to the substrate.


      Key Features:

      • One person can quickly put down the panels and install the tubing while walking upright.
      • The tube is better protected than in a wire mesh install
      • Labor Saving - installs 75% faster
      • No bending or crawling
      • Available in R-5 or R-10 thicknesses
      • Eliminates stapling and cable ties
      • 2' x 4' panels are more accommodating to uneven gravel base and subbase surfaces
      • 1/2", 5/8" or 3/4" radiant tubing can be used with QuickTherm™
      • QuickTherm™ panels can reduce installation time by up to 75%. 1,000 feet of tubing installs in just a few hours.
      • QuickTherm™ panels can be drop shipped directly to the job site. Allow up to 3 weeks for delivery.
