800-QT100

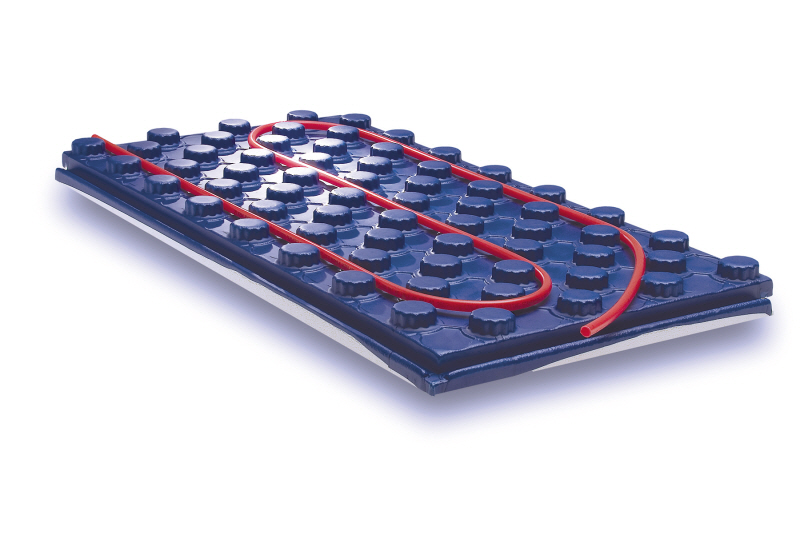

Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 1.8 in. Thick , Box of 18, 144 sqft
Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 1.8 in. Thick , Box of 18, 144 sqft
QuickTherm QT100 Data
| Thermal Resistance R-Value/ ASTM C-177 or C-518 | 5 °F . ft2 . hr/Btu |
| Thermal Conductivity K-Value | .329 Btu/hr . ft .°F |
| Density/ASTM C-303 | 2.0 lb/ft3 |
| Compressive Resistance at 10% Deformation/ASTM D-1621 | >36 psi |
| Water Vapor Permeability/ ASTM E-96 | 0.67 Perm-Inches, Max. |
| Water Absorption/ASTM C-272 | 4% by Volume Max. |
| Dimensional Stability/ ASTM D-2126 | 2% Max |
| Mold Resistance/ASTM C-1338 | No Growth |
| Panel Size | 25" x 49" |
| Usable Area | 24" x 48" |
| Tubing/ASTMF2623 (PE-RT), ASTM F876 (PEX),ASTM F1281 (PAP) | 1/2", 5/8", & 3/4" |
| Total Thickness Including Pipe Grid | 1.8" |
| Nominal (EPS) Insulation Thickness | 1" |
| Screed Volume in Tube Grid | 875 Cubic Inches |
| Cover Stock | Polystyrene |
| Case Quantity | 18 panels / 144 Sq. Ft. |
Install thousands-of-feet of tubing in just a few hours with QuickTherm™
QuickTherm™ panels reduce labor costs by making it easy to properly install radiant tubing. There's no need to tie, clip, or staple tubing to the substrate.
Key Features:
One person can quickly put down the panels and install the tubing while walking upright.
The tube is better protected than in a wire mesh install
Labor Saving - installs 75% faster
No bending or crawling
Available in R-5 or R-10 thicknesses
Eliminates stapling and cable ties
2' x 4' panels are more accommodating to uneven gravel base and subbase surfaces
1/2", 5/8" or 3/4" radiant tubing can be used with QuickTherm™
QuickTherm™ panels can reduce installation time by up to 75%. 1,000 feet of tubing installs in just a few hours.
QuickTherm™ panels can be drop shipped directly to the job site. Allow up to 3 weeks for delivery.
Legend QuickTherm Brochure
