676256A

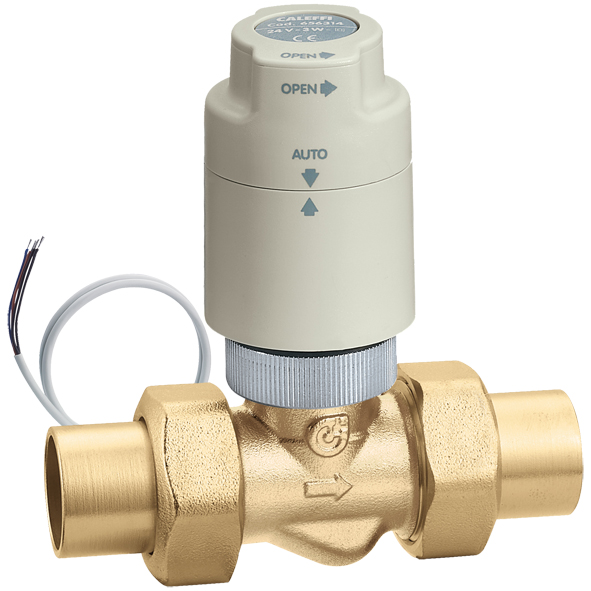

Caleffi Zone Valve 3/4 in. Press Fit Twist Top w/ES
Caleffi Zone Valve 3/4 in. Press Fit Twist Top w/ES
Details
Item Details:
| Max working pressure | 150 psi. |
| Max temp | 200 ° |
| Max ?P close-off pressure | 20 psi |
| Power supply | 24V AC/DC |
| Initial current draw | ? 250 mA |
| Power Consumption | Holding 3 W Inrush 19 VA |
| Rating of micro-switch contacts | 5 A (24 V) |
| Wire Lead Connection | 31.5 in. |
Description
2-way thermo-electric zone valve Two-way thermo-electric zone valve. Complete with TwisTop™ (code 656354) actuator. Brass trim. Spring return. Normally closed.
- Power consumption: holding: 3 W.
- Power consumption: inrush: 6 VA.
- Connection: 3/4", press union.
- Maximum working pressure: 150 psi.
- Medium temperature range: 32–200 °F.
- Electric supply: 24 V (AC) / (DC).
- Starting current: ≤ 250 mA.
- Auxiliary microswitch contact rating (24 V): 5 A.
- △p max.: 20 psi.
- Cv: 4.0 gpm.
