6687N5S1A

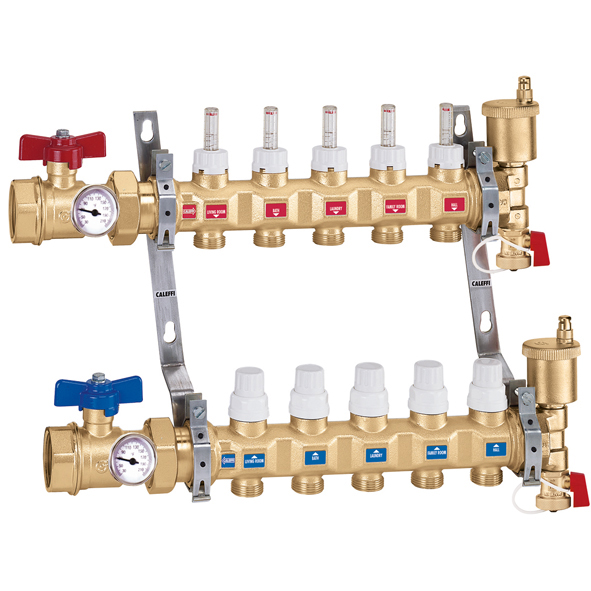

Caleffi TwistFlow™ Radiant Manifold Assembly 12 loop 1 1/4 in.
Caleffi TwistFlow™ Radiant Manifold Assembly 12 loop 1 1/4 in.
Item Details:
| Max working pressure | 150 psi. |
| Max. working temperature | 180 ° F |
| Max peak Temperature | 200°F |
| Flow meter scale | 1/4 to 2 gpm |
| Outlet center distance | 2 in. |
| Supply | 1 1/4 in. |
| Branches | 12 |
| Outlets | 3/4 in. |
668S1 TwistFlow™ Assembly Brass Manifold
You get what you pay for in Manifolds
Caleffi is one of the biggest names in hydronic controls. When you want the best, you want Caleffi.
These manifolds include:
Flow meters on each branch - This aids in set up for troubleshooting and allows for heat control on each loop of tubing.
A Balancing Valve for each branch of the manifold - This provides maximum control and flexibility.
Shut-off Ball Valves - for isolation and control.
Supply and Return Temperature Gauges - for system troubleshooting and performance measurement.
Air eliminators and purge drain - right on the manifold for easy start-up
Top quality Brass construction for proven reliability
Mounting Bracket for secure professional look.
Sub-Zoneable - With the addition of an actuator on the balancing valve, each loop or any combination of loops can be a separate thermostat controlled zone.
Caleffi IDRONICS 4: Manifold Distribution Systems
