656354
Caleffi TwisFlow Thermo-Electric 24 V AC/DC, 250 mA, 300 seconds, micro-switch
Caleffi TwisFlow Thermo-Electric 24 V AC/DC, 250 mA, 300 seconds, micro-switch
Item Details:
| Power supply 24V AC/DC | 4 Wire |
| Initial current draw | ? 250 mA |
| Power Consumption | Holding 3 W Inrush 6 VA |
| Rating of micro-switch contacts | 5 A (24 V) |
| Wire Lead Connection | 31.5 in. |
| Power Supply: | 24 V AC/DC |
| Initial current draw: | 250 mA |
| Power consumption: | |
| Holding: | 3 VA |
| Inrush: | 6 VA |
| Rating of micro-switch contacts: | 5 A (24 V) |
| Wire Lead Connection | 31.5 in. |
| Microswitch | Yes |
| Conductors | 4 |

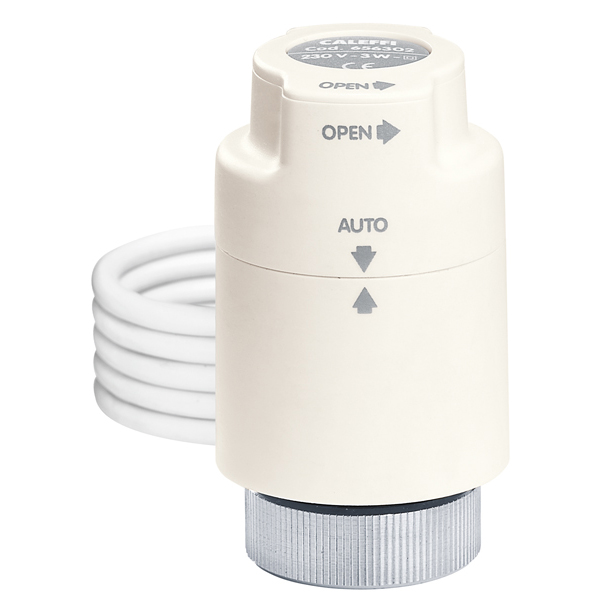

Twist Top Thermo-Electric Zone Valve Actuator
Function
Zone valves are used to control hot and chilled water in heating and air conditioning systems. Coupled with a thermo-electric control actuator and controlled by a room thermostat, they allow automatic on/off control of the hydronic circuit.
Choose between two styles of thermo-electric actuators with, or without, auxiliary micro-switch: The Twist Top actuator, code 6563x4, featuring a pop-up opening/closing indicator which can be manually opened with a twist of the top; or the code 6564x4 with pop-up opening/closing indicator, and quick-coupling for easy installation. Both styles have low inrush current draw and power consumption.
Separately orderable valve bodies, actuator styles and end connections, allows field assembly of the desired zone valve without compromise.
