Caleffi LegioMix® Electronic Mixing Valve 2 in. Sweat Union 47Cv
Caleffi LegioMix® Electronic Mixing Valve 2 in. Sweat Union 47Cv
Details
Item Details
| Connector | 2 in. sweat |
| Recommended Flow Rate Minimum (gpm/lpm) | 8.8 / 33.8 |
| Recommended Flow Rate Maximum (gpm/lpm) | 215 / 814 |
| Max. body pressure rating | 250 psi |
| Max. operating pressure | 150 psi |
| Suitable fluids | Water |
Description

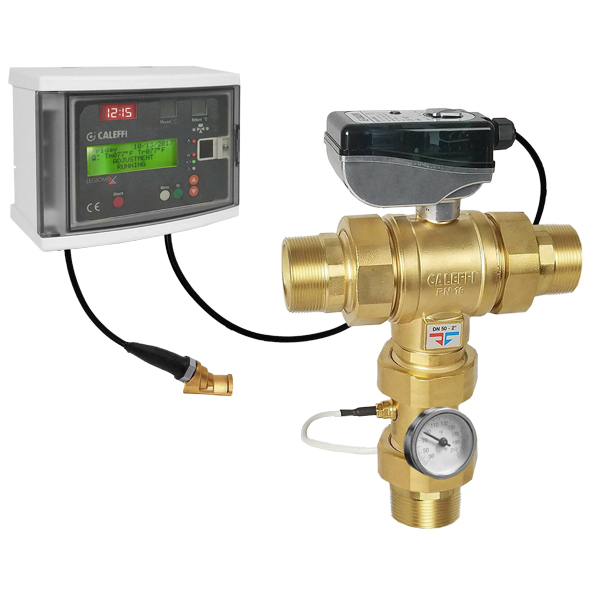

Caleffi LEGIOMIX® Electronic Mixing Valve
Description
Electronic mixing valve with optional selectable programs for thermal disinfection of hot water recirculation systems to kill Legionella bacteria.
Code number includes:
- 3-way ball valve
- 3-wire floating control actuator
- controller/user interface with DIN rail mounting bracket
- mixed outlet temperature sensor/probe
- return temperature sensor strap on
- mixed outlet temperature gauge
- Compliance with the following codes: IPC and UPC for use in accordance with the U.S. and Canadian plumbing codes
Compliance with the following standards:
- ASSE 1017 Temperature Actuated Mixing Valves for Hot Water Distribution Systems
- CSA B15.3 Water Temperature Limiting Devices
- NSF/ANSI 372 - 2016, Drinking Water System Components - Lead Content
- Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875
- S.3874, Reduction of Lead in Drinking Water Act
Meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B15.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
