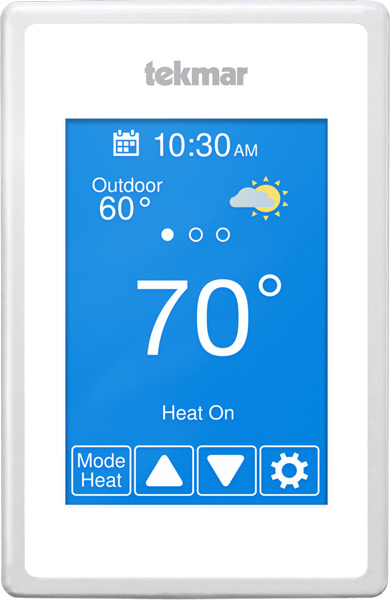

Tekmar WiFi Thermostat 563 - Conventional 2H/2C or Heat Pump 4H/2C
563
Tekmar WiFi Thermostat 563 - Conventional 2H/2C or Heat Pump 4H/2C
Tekmar WiFi Thermostat 563 - Conventional 2H/2C or Heat Pump 4H/2C
Specifications
| Control | Microprocessor control. This is not a safety (limit) control. |
| Packaged weight | 0.7 lb |
| Dimensions | 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm) |
| Display | 3.5" color touchscreen |
| Enclosure | White PVC plastic, NEMA type 1 |
| Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient conditions | Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing |
| Environmental | Do not use in presence of ammonia (animal barns). |
| Power supply | 15 to 30 V (ac/dc), 2 VA, Class 2 |
| Relays | 30 V (ac/dc), 2 A, Class 2 circuits |
| Humidity sensor | 0 to 90% ±4% RH |
| Temperature sensor | NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892 |
| –Included Sensors | None |
| Communications | WiFi 802.11n, 2.4 GHz, WPA2 encryption |
| Mobile app | Apple iOS 12 or higher, Android 8 or higher |
| Languages | English/Français/Español |
| Warranty | Limited 3 Year (See 563_D for full warranty) |
The WiFi Thermostat 563 operates either a multi-stage conventional or heat pump HVAC system, a fan, and up to two accessories, including a humidifier, dehumidifier and ventilator. When connected to the Internet, the Watts® Home mobile allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. An optional floor sensor can be installed to enhance comfort and protect floor coverings when operating radiant floor systems.
Mobile and web app for remote control, away energy savings mode
Optional remote floor, room, outdoor and relative humidity sensors, local outdoor temperature and weather
Email error and warning notifications, automatic time clock
7 day programmable schedule, early start
Energy monitoring, multiple background colors
Humidifier window frost protection, conventional systems: 2-stage heating, 2-stage cooling, fan and 2 accessories
Heat pump systems: 4-stage heating, 2-stage cooling, fan, reversing valve and 1 accessory
Supports dual fuel systems
Accessory options: humidifier, dehumidifier, HRV/ERV ventilator, water-source heat pump loop valve
