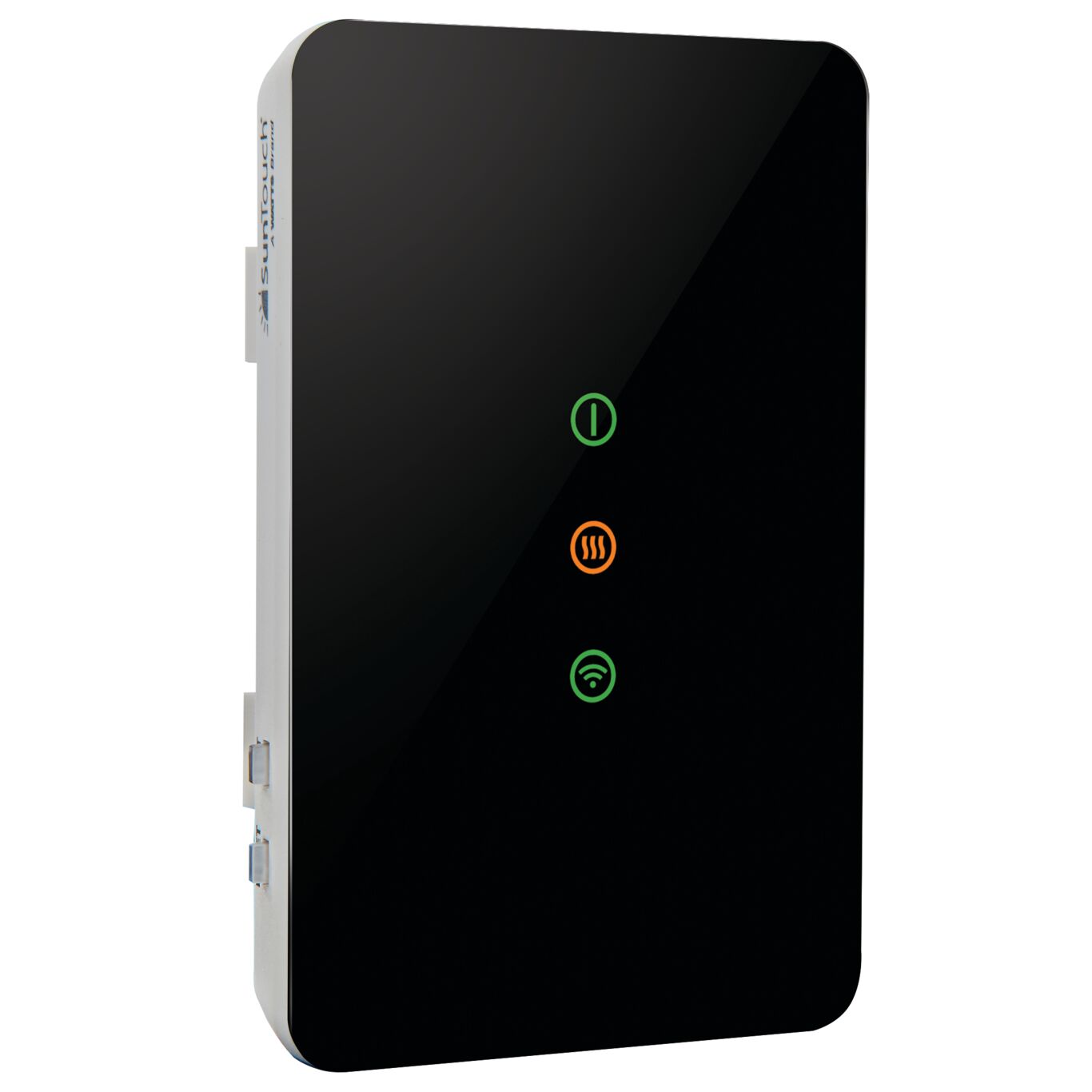

SunStat Relay R4 120/240V Sub Control
SunStat Relay R4 120/240V Sub Control
Specifications
| Operation Voltage | 120/240 VAC, 60 Hz, 3 watts |
| Maximum Load | 15 amps resistive |
| Maximum Power | 1800 watts at 120 VAC, 3600 watts at 240 VAC |
| GFCI | Class A (5 milliamp trip) |
| Dimensions | 4.73" H x 3.11" W x 1.9" D (120 x 79 x 48 mm) |
| Ambient conditions | 32 to 86°F (0 to 30°C), <90% RH non-condensing |
This SunStat(R) relay R4 is designed to control the voltage to SunTouch(R) electric floor heating systems that require more than 15 amps. They connect directly to SunStat thermostats for simple control of larger systems. Each SunStat Relay R4 has built in 915MHz technology to connect wirelessly to SunStat ConnectPlus(TM) thermostat. The ConnectPlus thermostat supports Wi-Fi connectivity with apps for Android and iOS mobile devices wireless technology that can be viewed instantly via your mobile device using Apple(R) iOS and Android(TM) operating systems. A free Watt Home app can be downloaded from the App Store(R) online store or Google Play(TM) store. ConnectPlus works with Alexa and Hey Google for voice control of your floor warming system.
Features
Built-in GFCI
Built-in 15-Amp relay controls up to 150 sq. ft. at 120V or 300 sq. ft. at 240V
Daisy-chain up to ten SunStat Relays for control of up to 1,500 sq. ft. at 120 VAC or 3,000 sq.ft. at 240VAC
Connect 6 Relays Wirelessly by Wifi with SunStat ConnectPlus Thermostat
3-year warranty
Watts Radiant Sunstat Relay R4 Submittal
