Details
Specifications
| Line1, Line2 | 120, 208, 240, 277 VAC, 12 AWG (Minimum) |
| 120V, N | 120 VAC, 14 AWG |
| Contactors | 50A Resistive load |
| Compatible Sensors | Outdoor Sensor (provided) 090, 095, 072, 18 AWG |
| Approvals | File E483460, UL 508A, CAN/CSA-C22.2 No. 14 CSA C US, meets class B: ICES & FCC Part 15 |
| Environment | Indoor, NEMA 1 enclosure, operating temperature -4°F to 122°F (-20°C to 50°C) < 90% RH non-condensing |
| Dimensions | 20" x 12" x 8 7⁄8" |
Description

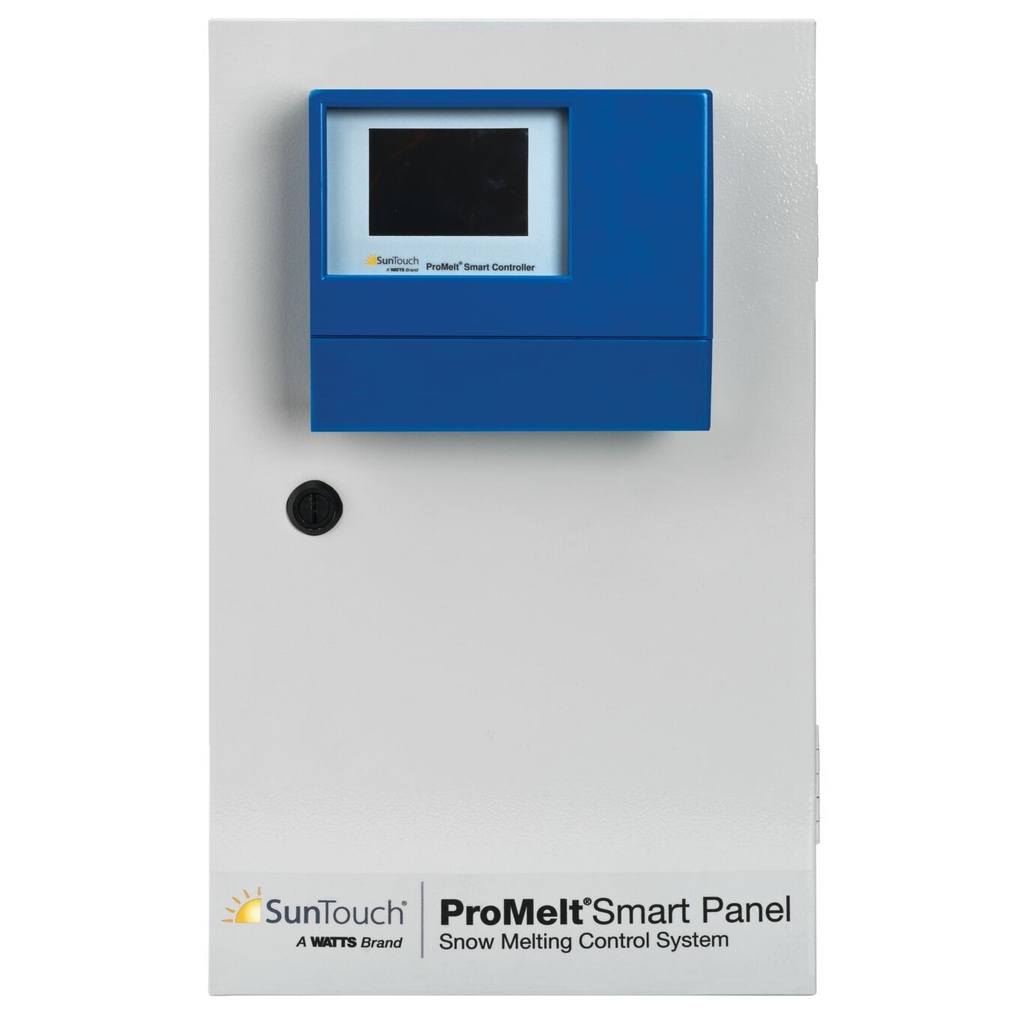

This ProMelt(R) Smart Panel is designed to control any size snow melting system when connected to a compatible ProMelt product. The panel has a 100 AMP capacity to operate 120, 208, 240, or 277 VAC snow melting systems. The panel is enabled with Wi-Fi to allow you to control your system from anywhere with the Watts Home app.
Features
- 100 AMP capacity
- Compatible with ProMelt mats, cables and sensors
- Control from anywhere with the Watts Home App
- Prewired with ProMelt Smart Controller with Wi-Fi
Videos
SunTouch ProMelt SmartPanel
Watts Radiant ProMelt Smart Panel Manual
