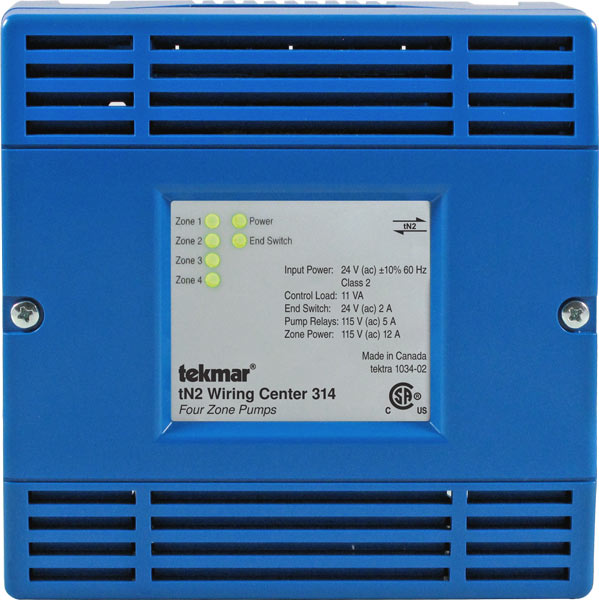

The tekmarNet® 2 Wiring Center 314 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This product provides power for up to four tekmarNet ® 2 thermostats and up to four 115 V (ac) zones pump outputs, as well as providing an end switch closure to enable an external device such as a boiler. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.

• Only requires 2 wires per zone
• Four 115 V (ac) powered pump outputs
• For use with tekmarNet® 2 thermostats only
• Supports two-stage tekmarNet® 2 thermostats
• tN4 expansion terminals
• Isolated end switch
• Outdoor sensor input
• External diagnostic LEDs
• CSA C US Certified for use in USA and Canada
