313

Specifications

Control	Microprocessor control. This is not a safety (limit) control
Packaged weight	1.4 lb
Dimensions	5.5” H x 5.5” W x 2.25” D
Enclosure	Blue PC+ABS plastic, NEMA type 1
Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient conditions	Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% Noncondensing
Power supply	24 V (ac) ±10%, 60 Hz, 3 VA min, 99 VA max, Class 2
Zone valve load	24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
End switch relay	24 V (ac) 2 A
Zone group pump	115 V (ac) 5 A
Sensors	NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
–Included Sensors	None
-Optional Sensors	Outdoor Sensor 070
Warranty	Limited 3 Year (See D313 for full warranty)

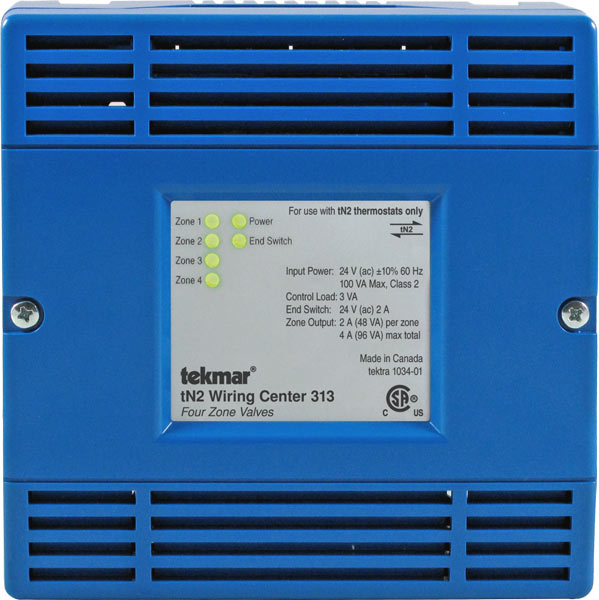

The tekmarNet® 2 Wiring Center 313 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to four tekmarNet ® 2 thermostats, and up to four 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A line voltage output on the back of the control can operate a zone group pump if required. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.

Features

• CSA C US certified for use in USA and Canada

• Powered zone group pump output

• External diagnostic LEDs

• tN4 expansion terminals

• Supports two-stage tekmarNet® 2 thermostats

• Outdoor sensor input

• Only requires 2 wires per zone, four 24 V (ac) powered zone outputs

• For use with tekmarNet® 2 thermostats only

• Isolated end switch
