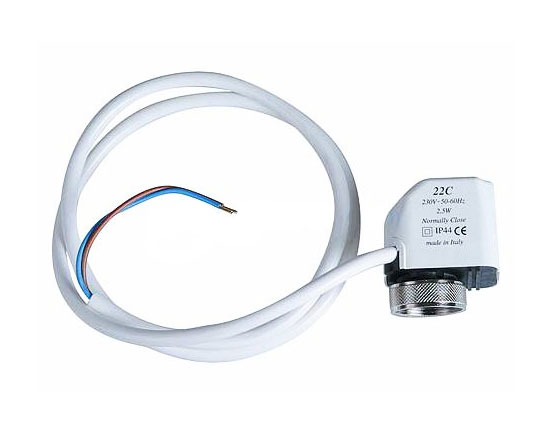

22C24NC2

Manifold Zone Valve Actuator, 2 Wire

This valve actuator is desiged for low wattage, individual radiant circuit control. It provides on/off flow control to individual radiant circuits. Incorporates an indicator window that allows a visual indicator whether the valve is fully open or closed. Flow can be balanced prior to installing by turning the adjustment valve under the blue cap. Actuator is 24 VAC (1.6 W) with two wires to connect to the thermostat and close an end switch.

Features

• Features an indicator window that indicates valve open or close status
• For low wattage, individual radiant control
• Normally in closed position
• Great for multiple small radiant zones
