204237
3/8 in. Onix Barb, 16-branch x 1 in. Trunk x 48 in. long Cut Manifold
204237
3/8 in. Onix Barb, 16-branch x 1 in. Trunk x 48 in. long Cut Manifold
3/8 in. Onix Barb, 16-branch x 1 in. Trunk x 48 in. long Cut Manifold
Details
| Body Material | Copper |
| Branch Outlet Connection Size | 3/8 IN |
| Branch Outlet Connection Type | Barb |
| Brand | Watts |
| EAN | 840213023454 |
| Number Of Branches | 16 |
| Part Number | 81001937 |
| Series | CustomCut Manifolds - Onix |
| Trunk Diameter | 1 IN |
| Trunk Inlet Connection Size | 1 IN |
| Trunk Outlet Connection Size | 1 IN |
| Trunk Outlet Type | Open |
| With Valves | No |
Description

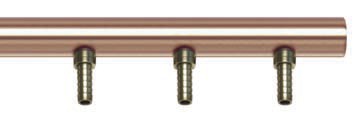

3/8 in. Onix CustomCut Copper Manifolds
This 3/8 IN CustomCut™ copper manifolds for Onix are designed for flexibility for the installer. This manifold comes in 4-ft.-long copper sticks fitted with 3/8 inch Onix barb fittings spaced 3 inch on center for 16-branch (3/8 in. stub x 1 in. trunk). Manifolds and manifold components are assembled by brazing and/or soldering. CustomCuts manifolds are sold as a single manifold.
Features
- Cost-effective solution offers flexibility for the installer
- 4-foot long copper sticks to be cut to length in the field
- Sold as a single manifold
- Onix barb fittings at 3 in. on center for 16-branch
