Caleffi HydroMixer thermostatic fixed temperature mixing unit, UPS 15-58 LH
166610A
Caleffi HydroMixer thermostatic fixed temperature mixing unit, UPS 15-58 LH
Caleffi HydroMixer thermostatic fixed temperature mixing unit, UPS 15-58 LH
Item Details
| Connections: | |
| top outlets: | 1-1/4 in. male union threads |
| top outlets: | 1-1/4 in. male union threads |
| bottom inlets: | 1-1/2 in. male union threads |
| bottom inlets: | 1-1/2 in. male union threads |
| inlet/outlet center distance: | 5 inches (125 mm) |
| inlet/outlet center distance: | 5 inches (125 mm) |
| Pump | |
| Pump | |
| Pump Side: | Left Side |
| Pump Side: | Right Side |
| Three-speed pump: | Grundfos: UPS 15-58-130 |
| Three-speed pump: | Grundfos: ALPHA 25-55U |
| Body material: | cast iron |
| Body material: | cast iron |
| Power supply: | 115 V 50/60 Hz |
| Power supply: | 115 V 50/60 Hz |
| Pump connections: | 1 1/2” male straight |
| Pump connections: | 1 1/2” male straight |
| Temperature gauges | |
| Temperature gauges | |
| Dual scale: | 32 –176°F (0 – 80°C) |
| Dual scale: | 32 –176°F (0 – 80°C) |
| Materials | |
| Materials | |
| Three-way thermostatic mixing valve | |
| Three-way thermostatic mixing valve | |
| Body: | brass |
| Body: | brass |
| Shutter: | PSU |
| Shutter: | PSU |
| Spring: | stainless steel |
| Spring: | stainless steel |
| Seals: | EPDM |
| Seals: | EPDM |
| Connecting pipes | |
| Connecting pipes | |
| Material: | steel |
| Material: | steel |
| Check valve | |
| Check valve | |
| Body: | brass |
| Body: | brass |
| Shutter: | PPAG40 |
| Shutter: | PPAG40 |
| Shut-off ball valves Body: | brass |
| Shut-off ball valves Body: | brass |
| Performance | |
| Performance | |
| Suitable fluids: | water, glycol solution |
| Suitable fluids: | water, glycol solution |
| Max. percentage of glycol: | 30% |
| Max. percentage of glycol: | 30% |
| Max. working pressure: | 145 psi (10 bar) |
| Max. working pressure: | 145 psi (10 bar) |
| Adjustable temperature range: | 80–125°F (25–50°C) |
| Adjustable temperature range: | 80–125°F (25–50°C) |
| Primary inlet max. temperature: | 212°F (100°C) |
| Primary inlet max. temperature: | 212°F (100°C) |

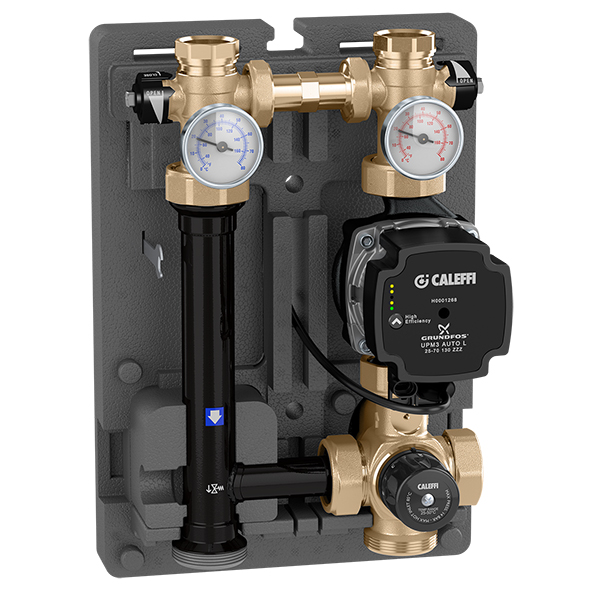

166 series HydroMixer
The 166 series HydroMixer™ provides a fixed temperature flow to
low temperature secondary heating circuits (such as floor radiant
panels), complete with onboard three-speed or variable-speed pump,
thermostatic three-way mixing valve with built-in temperature sensor,
check valve, supply and return temperature gauges, secondary circuit
shut-off ball valves and pre-formed insulation shell. Versions are
available with either the three-speed Grundfos UPS 15-58 pump or
the variable-speed Alpha 25-55U pump.
The unit can be ordered with supply flow and pump on the right or
left side, and the unit is field reversible to accommodate changing
installation requirements. The adjustable differential pressure by-pass
valve, code 519600 and wall bracket code 165001 are optional. The
unit comes with male union connections which require separately
purchased, 1 inch sweat or NPT, top outlet and bottom inlet fitting
kits.
Caleffi Hydromixer Brochure
