1200916U2ST

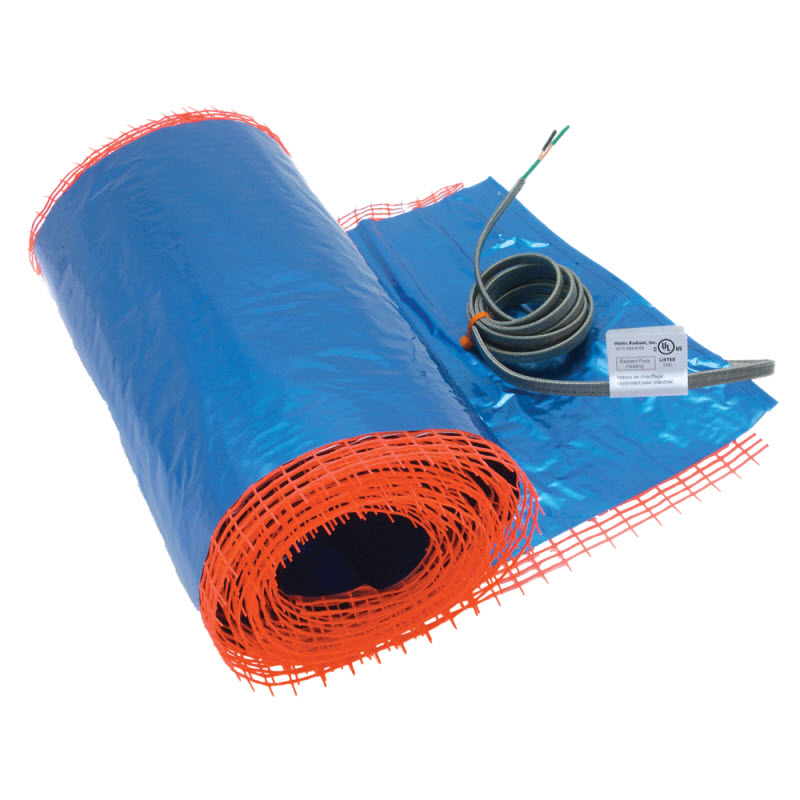

HeatWeave UnderFloor Mat, 9.5 ft. x 16 in., 120V
HeatWeave UnderFloor Mat, 9.5 ft. x 16 in., 120V
Details:
| Amp. Draw | 1 |
| Supply Voltage | 120 VAC, 1-Phase |
| Maximum Circuit Load | 20 amps (15 amps with SunStat Control) |
| Wire Spacing | 2-3/4 in. (70 mm) o.c. |
| Maximum Allowable Temperature | 194°F (90°C) |
| EMF | Less than 1 milligauss |
| Heating Elements | Oxygen-free copper or nickel-copper |
| Insulation | ETFE Fluoropolymer |
| Ground Braid | Stainless Steel |
| Minimum Allowable Bend Radius | 1in. (25 mm) |
| Length | 9 ft. - 6 in. |
| Width | 16 in. |
| Area Coverage | 12.6 sqft. |
Watts Radiant TapeMats
Watts Radiant TapeMats are the safest and easiest-to-install heating mat in the industry. It is Listed by UL® for the U.S. and Canada, and tested by Tile Council of America for all residential and moderate commercial applications. All mats have the "S-pattern" wire construction and produce 12 watts/sq. ft. Watts Radiant offers the largest selection of mats in the industry with over 40 sizes manufactured in lengths covering up to 180 sq. ft. - with one mat!
Consider The Benefits...
The industry's first thin, open-weave construction allows thin-set or self-leveling mortar to flow through the mat and easily bond with the underlying material. This one-step application adds only 1/8 in. thickness over a normal tile installation.
The industry's first single power lead construction makes mats easy to install and simpler to connect to the control.
The industry's highest-quality heating wire using ETFE high-temperature insulation, PEX jacket, and oxygen-free copper alloys for corrosion resistance, temperature resistance, abrasion resistance, and longevity.
The industry's first twin-wire construction means ultra-low EMF.
120-VAC and 240-VAC models available for small residential to large commercial applications.
The industry's only shielded and fully grounded 10-ft. power lead provides safety and jobsite durability (longer lengths available on request). Power leads are color-coded for 120 VAC or 240 VAC.
Heated floors, the easy way
Order mat for your exact floor plan.
Simply unroll to fit the space.
No cuts or turns required.
Features & Benefits
Quicker, simpler, easier installation - Custom TapeMat® is pre-shaped to fit any area.
Open weave TapeMat® allows for a 1-step application with thin-set or self-leveler.
Easy alterations if room dimensions change.
Simple to adjust for curves, angles, & cut-outs.
Double-sided tape adheres to subfloor for faster layouts.
UL listed at 12 Watts/square foot.
Watts SunTouch TapeMat Manual
