095

Specifications

Dimensions	1-15/16" H x 3-5/32" OD (50 mm H x 80 OD mm)
Enclosure	White PVC plastic, UV stable, NEMA type 1
Operating range	-40 to 122°F (-40 to 50°C)
Compatible equipment	tekmar Snow Melting Control 654
Warranty	Limited 3 Year Warranty
Packaged weight	0.4 lbs (180 g)
Dimensions	1-15/16" H x 3-5/32" OD (50 mm H x 80 OD mm)
Enclosure	White PVC plastic, UV stable, NEMA type 1
Operating range	-40 to 122°F (-40 to 50°C)
Compatible equipment	tekmar Snow Melting Control 654
Warranty	Limited 3 Year Warranty

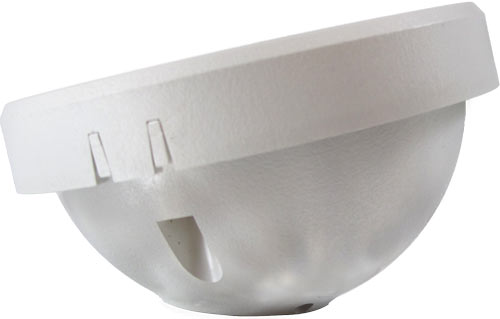

Aerial Mounted Snow Sensor

The Snow Sensor 095 is an aerial mounted sensor that detects falling snow and allows a tekmar Snow Melting Control 653 and 654 to automatically start the snow melting equipment. System stop is provided by the control's timer or by manual disable. The Snow Sensor 095 mounts to a nominal 1/2" (16 mm) metal or PVC conduit or pole. The sensor is well suited to adding automatic start to an existing snow melt system.

Features

• Automatic snow/ice detection
• Easy To Install
• Mounts to 1/2" Metal or PVC Conduit
• UV Resistant
