Tekmar Snow / Ice Sensor - 65 in. (20 m) Wire
090
Tekmar Snow / Ice Sensor - 65 in. (20 m) Wire
Tekmar Snow / Ice Sensor - 65 in. (20 m) Wire
Details
| Packaged weight | 4.4 lb (2000 g) |
| Dimensions | 1-3/4" H x 3-7/16" OD (45 mm H x 87 mm OD) |
| Sensor material | Silicon brass, 65 ft. (20 m) 5 conductor stranded wire with polyethylene jacket |
| Approvals | CSA C US |
| Operating range | -30 to 170°F (-34 to 77°C) |
| Included | 4 #4-40, 7/16" machined, stainless steel screws 4 #6-32, 3/8" flathead, slotted, stainless steel screws |
| Warranty | Limited 3 Year Warranty |
Description

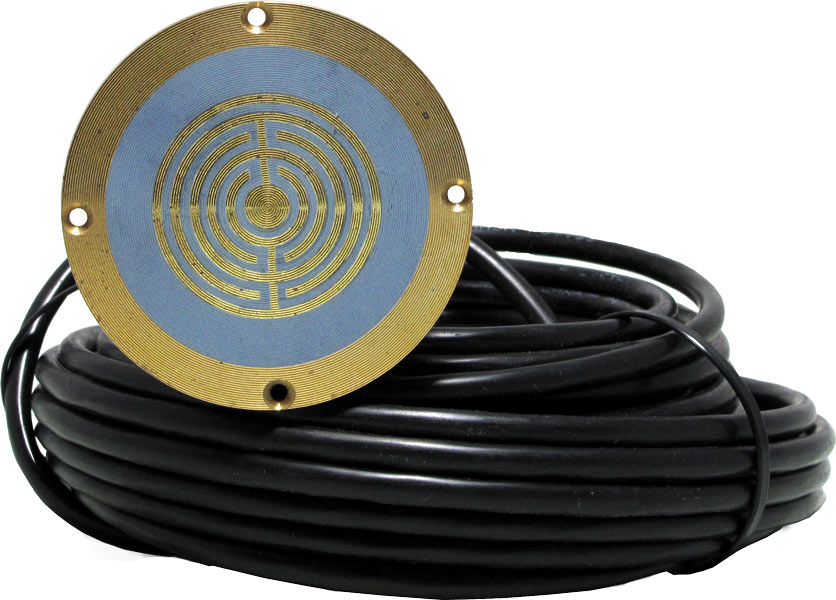

In Ground Snow/Ice Sensor
The Snow/Ice Sensor 090 is an in ground sensor used with tekmar snow melting controls to automatically detect snow or ice on a driveway or walkway. The 090 has 65 ft (20 m) of wire. This product can be used in applications ranging from residential driveways to commercial building fronts such as emergency access entries. This sensor allows tekmar snow melting controls to automatically operate the snow/ice melt system only when snow or ice is present, while also providing slab temperature feedback to the control.
Features
- 65 ft (20 m) of cable
- Automatic snow/ice detection
- Designed for long life in driveway and walkway installations
- Long wire included so in field splicing is not necessary
- Slab temperature sensing
Tekmar 090 Submittal
