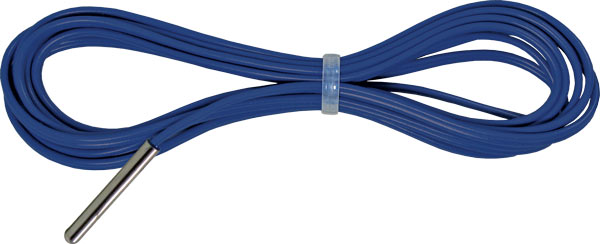

Tekmar Slab Sensor - 10' wire
079
Tekmar Slab Sensor - 10' wire
Tekmar Slab Sensor - 10' wire
Details
Specifications
| Agency Approvals | CSA C US |
| Dimensions | 3/16" OD x 1-1/2" (5 mm OD x 38 mm) |
| Operating Range | -58 to 140 degrees F (-50 to 60 degrees C) |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Sensor Material | 316 stainless steel, 10 FT (3 m) 24 AWG, 300 volt PVC insulated Zipcord |
Description
The Slab Sensor 079 is commonly used for floor temperature sensing in floor heating applications. The thin casing allows for retrofit installation between tile spaces if necessary. This sensor is designed to provide a thermostat with the ability to maintain a minimum slab temperature, or help to limit the maximum slab temperature.
Features
10K thermistor
Commonly used for floor temperature sensing in floor heating applications
Compatible with tekmar thermostats that support slab sensing
Thin profile to simplify installation
Videos
<p width="420" height="315"></p><div class="media_iframe_video"><div class="css_editable_mode_display"> </div><div class="media_iframe_video_size"> </div><iframe src="https://www.youtube.com/embed/7hT5NUSZz-M" title="Tekmar 518 & 519 Installation Video" alt="Tekmar 518 & 519 Installation Video" frameborder="0" allowfullscreen="allowfullscreen"></iframe></div> <span style="font-weight: bold; width: 100%;text-align: center; display: block;">Tekmar 518 & 519 Installation Video</span><br><p></p>
Tekmar 079 Submittal
