Tekmar Slab Sensor - 20' (6 m) wire
072
Tekmar Slab Sensor - 20' (6 m) wire
Tekmar Slab Sensor - 20' (6 m) wire
Details
Specifications
| Agency Approvals | CSA C US |
| Dimensions | 3/8" OD x 1 1/2" (10 mm OD x 38 mm) |
| Operating Range | -60 to 140 degrees F (-51 to 60 degrees C) |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Sensor Material | HDPE sleeve, 20 FT (6 m) HDPE jacketed wire |
Description

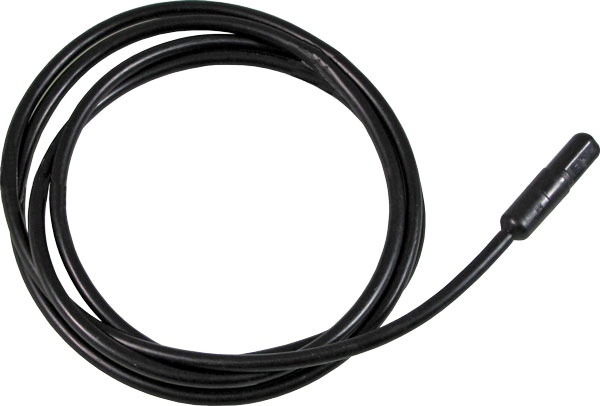

The Slab Sensor 072 is designed to measure temperature in outside snow melting slabs. It has a high density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete, as it is suitable for direct burial. This product is supplied with 20 FT (6 m) of 2 conductor cable.
Features
Water resistant
10K thermistor
20 ft (6 m) cable
Designed for use in conduits, soils, or concrete
Videos
<p width="420" height="315"></p><div class="media_iframe_video"><div class="css_editable_mode_display"> </div><div class="media_iframe_video_size"> </div><iframe src="https://www.youtube.com/embed/aKyN_cBc388" title="Tekmar Snow Melt Sensor Selection & Installation" alt="Tekmar Snow Melt Sensor Selection & Installation" frameborder="0" allowfullscreen="allowfullscreen"></iframe></div> <span style="font-weight: bold; width: 100%;text-align: center; display: block;">Tekmar Snow Melt Sensor Selection & Installation</span><br><p></p>
Tekmar 072 Submittal
