Tekmar Relay - 24 V (ac) coil
Tekmar Relay - 24 V (ac) coil
| Packaged weight | 0.4 lb. (180 g) |
| Dimensions | 3" H x 1-9/16" W x 2-3/8" D (75 x 40 x 60 mm) |
| Approvals | CSA C US |
| Power supply (coil) | 24 V (ac) +10%, -20%, 50 Hz 2.7 VA, 60 HZ 2.3 VA |
| Relay contacts (max.) | 10 A resistive @ 250 V (ac) N.O., N.C. |
| 10 A resistive @ 30 V (dc) N.O., N.C. | |
| 7 A inductive @ 250 V (ac) | |
| Relay contacts (min.) | 10 mA 1 V (dc) |
| Ambient conditions | Indoor use only, -40 to 140°F (-40 to 60°C), RH < 85% Non-condensing |
| Warranty | Limited 3 Year Warranty |
DPDT 24 V (ac) coil Relay

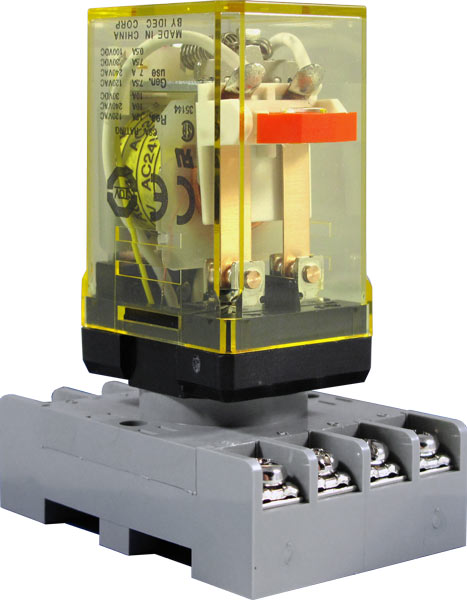

The Relay 003 is a 24 V (ac) coil DPDT (double pole double throw) relay that is used to isolate electrical loads and allow higher current ratings than the on board relays found on tekmar controls. It can be used in applications ranging from doubling the capability of a single output (e.g. energize a pump as well as provide a boiler demand from one output) to allowing a pump to be used that draws more than the control s specified relay rating. This product uses a 24 V (ac) coil that once energized, closes 2 normally open contacts, and opens 2 normally closed contacts.
Features
- Double Pole Double Throw relay (DPDT)Works with any tekmar control that uses 10K sensors
- Easy to replace ("ice cube" style - no need to remove wiring)
- Isolate electrical loads
- LED to indicate when energized
- Test tab for easy test and manual override
Tekmar 003 Manual
