Tekmar 10K Temperature Simulator
Tekmar 10K Temperature Simulator
Details
| Packaged weight | 0.4 lb. (180 g) |
| Dimensions | 4-3/4" H x 2-7/8 W x 1-7/16" D (121 x 73 x 37 mm) |
| Enclosure | White PVC plastic with 24" wire, NEMA type 1 |
| Sensor simulation | NTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892 |
| Yellow | 45 to 85°F (7 to 29°C) incremental |
| Blue | -40 to 90°F (-40 to 32°C) incremental |
| Red | 95 to 230°F (35 to 110°C) incremental |
| Warranty | Limited 3 Year Warranty |
Description

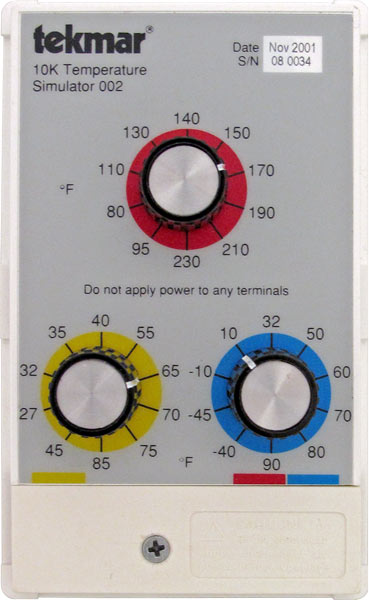

10K Temperature Simulator
The 10K Temperature Simulator 002 is designed to be used to test any tekmar control using 10K thermistor sensors. This can be used to troubleshoot controls in the field, or to set up a simulation on a workbench and model control behavior. The main use of this product is to simulate control operation. There are 3 separate sensors that can be simulated using the rotary dials on the 002
Features
- 3 separate temperature dials
- Works with any tekmar control that uses 10K sensors
Tekmar 002 Manual
